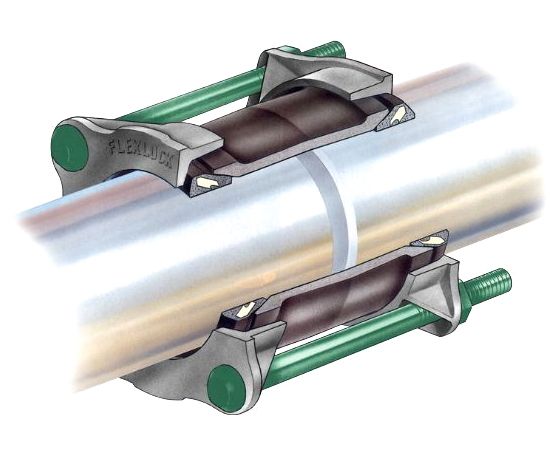

Coupling is designed to join pipes made of steel, ductile iron, UPVC, grey iron, asbestos cement and other materials. The coupling has a wide range tolerance on OD (up to 23 mm) and therefore can connect pipes of various outer diameters.
VAG VARIplus-RC Couplingfor various pipe outside diameters
PN: 10/16 - DN: 50...600
Product group: Fittings (incl. VAG BAIO®plus)
Medium: Water, Wastewater
Characteristics
- Designed to join pipes of various outside diameters with the same or different nominal bore
- Wide range tolerance on OD (up to 23mm)
- Can connect steel, ductile iron, UPVC, cast iron, asbestos cement and other rigid pipe materials
Specifications
- Seals: EPDM
- Sleeve: DN 50...300 rolled steel, DN 350...600 ductile iron EN-GJS 400-15 (GGG-40)
- End rings: Ductile iron EN-GJS 400-15 (GGG-40)
- Threaded anchor bolts: 4.8 electro galvanized
