Incinerator for General Waste
A General Waste Incinerator provides a controlled method for reducing combustible waste where regular transport to an external disposal facility may be impractical or costly. The ADR range is designed to handle general garbage together with other compatible waste streams including food waste, laboratory waste, biomedical waste and selected hazardous materials.
The system uses separate primary and secondary combustion chambers. Smaller models use manual charging, mid-range units use semi-automatic loading, and larger capacities combine a primary chamber with a modular secondary chamber. This allows the incinerator format to change according to throughput requirements rather than forcing one loading arrangement across the complete range.
Across the ADR family, capacities range from approximately 10 to 1000 kg/h. Standard units are skid-mounted and largely shop-assembled, with the incinerator, fuel tank and control panel mounted together for easier installation.
Dutco Tennant LLC supplies General Waste Incinerator solutions for municipalities, institutions, hospitality facilities, industrial sites and remote operations requiring an organised Waste Disposal System for combustible waste.
Handle Different General Waste Streams Within One System
- General Garbage – Suitable for routine combustible mixed waste.
- Food Waste – Supports disposal of food-related waste from institutions and commercial facilities.
- Municipal Solid Waste – Can process selected combustible fractions of municipal waste.
- Laboratory Waste – Applicable to compatible laboratory-generated waste streams.
- Biomedical Waste – The ADR range is also suitable for medical waste where the correct configuration is selected.
- Packaging Waste – Can process selected combustible packaging materials.
- Animal & Poultry Waste – The same platform is also used for animal, poultry and hatchery waste.
Simplify Installation, Loading & Combustion Control
- Skid-Mounted Construction – Major components are supplied together on a compact base for easier transportation and installation.
- Shop-Assembled Package – Units are largely pre-wired and connected before delivery.
- One-Time Loading Concept – The chamber can be sized so a larger quantity is charged at once rather than through frequent repeated loading.
- Negative-Pressure Support – Models above 50 kg/h can use an ejector with an FD fan to reduce smoke leakage when access doors are opened.
- Multiple Fuel Options – Burner options include diesel, gas and other supported fuels.
- Optional Automation – PLC controls can be added where more automated operation is required.
Types
The ADR range is available in different configurations according to capacity and loading method.
Manual-Loading Configuration
Used mainly for smaller-capacity systems.
- Typically applied to units from 10–50 kg/h
- Top-loading arrangement
- Primary and secondary combustion chambers
- Suitable for smaller facilities
- Practical where waste volumes are comparatively low
Semi-Automatic Configuration
Designed for medium-capacity waste disposal.
- Used across approximately 75–150 kg/h models
- Semi-automatic waste charging
- Two-chamber combustion arrangement
- Reduces repeated manual loading
- Suitable for institutions and larger facilities
Modular High-Capacity Configuration
Used for larger waste volumes.
- Applied to approximately 200–1000 kg/h systems
- Primary chamber with modular secondary chamber
- Greater waste-handling capacity
- Suitable for larger municipal or industrial sites
- Can be combined with additional emission-control equipment.

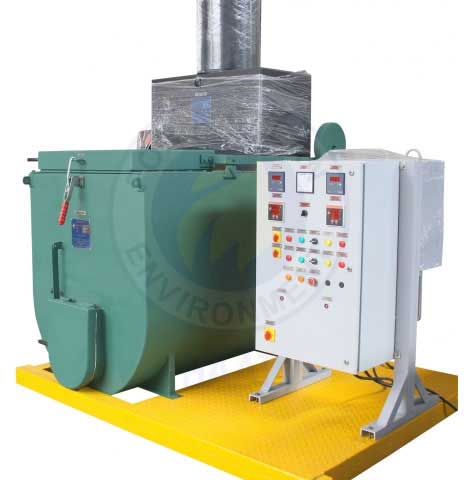

Skid Mounted Incinerator
The standard ADR arrangement is supplied on a skid for easier site deployment.
- Incinerator, fuel tank and control panel mounted together
- Pre-wired and pre-connected
- Compact installation footprint
- Easier relocation than a fully site-constructed system
- Suitable for remote and project-based operations
Automated Incineration System
Additional equipment can increase the level of operating automation.
- PLC control panel
- Instrumentation
- Optional ram loader
- Automated operating sequences
- Suitable for facilities requiring more controlled repeat operation.
Standout Features & Benefits
Reduced Loading Frequency
- The chamber can accommodate more waste than the nominal hourly throughput at one time.
- Operators do not need to recharge waste continuously throughout the burn cycle.
- This can reduce manpower requirements during routine operation.
Practical for Remote Sites
- Compact skid-mounted construction simplifies transport to remote facilities.
- Major components arrive largely assembled.
- Useful where extensive site fabrication is difficult.
Lower Internal Mechanical Wear
- There are no major wearing parts inside the combustion zone.
- This reduces dependence on moving mechanisms exposed directly to high temperatures.
- Helps simplify routine maintenance.
Long-Lasting Refractory System
- The combustion chamber uses monolithic castable refractory lining.
- The supplier states typical refractory life can reach approximately 10–15 years under suitable operating conditions.
- Expansion joints help accommodate thermal movement.
Safer Door Operation
- Negative pressure within larger units helps reduce smoke escape when the charging or ash doors are opened.
- The ejector arrangement also contributes to cooling of outgoing flue gas.
- This provides additional operational control around the combustion chamber.
Flexible Emission-Control Options
- Wet venturi scrubbers can be added where gas cleaning is required.
- Dust collectors and bag filters are also available.
- Emission monitoring and additional instrumentation can be incorporated according to project requirements.
Application Areas
Municipal & General Garbage Disposal
- Suitable for combustible municipal and institutional waste.
- Helps reduce waste volume before final ash disposal.
- Useful where local waste transport options are limited.
Hospitality & Accommodation Facilities
- Can handle food waste and general combustible garbage.
- Suitable for hotels, hostels and institutional accommodation.
- Supports on-site waste-management programmes.
Educational & Institutional Facilities
- Suitable for schools, universities and large campuses.
- Can process general waste along with selected laboratory waste.
- Helps centralise waste disposal within large facilities.
Remote Camps & Project Sites
- Skid-mounted format supports use away from major urban waste facilities.
- Reduces dependence on frequent off-site transport.
- Suitable for temporary or isolated project locations.
Food Processing & Catering
- Handles compatible food waste and combustible packaging.
- Useful for facilities producing recurring organic and packaging waste.
- Supports routine Waste Incineration where disposal volumes are predictable.
Medical & Laboratory Facilities
- Compatible configurations can process biomedical and laboratory waste.
- Selection should be based on waste classification and applicable emission requirements.
- Appropriate air-pollution-control equipment can be added where required.
Municipal & Industrial Waste Management in the UAE
- Dutco Tennant LLC supplies Incinerator System solutions for municipal, institutional and industrial applications.
- Waste Burning System configurations can be selected according to waste type, required capacity, loading method and emission-control needs.
- Organisations requiring an Incinerator System Dubai can choose manual, semi-automatic, skid-mounted or automated configurations according to site requirements.
