Metal Seated Gate Valve Water & Waste Water products
Metal Seated Gate Valve Sewage
Metal Seated Gate Valve Dutcotennant
Metal Seated Gate Valve Dutcotennant LLC

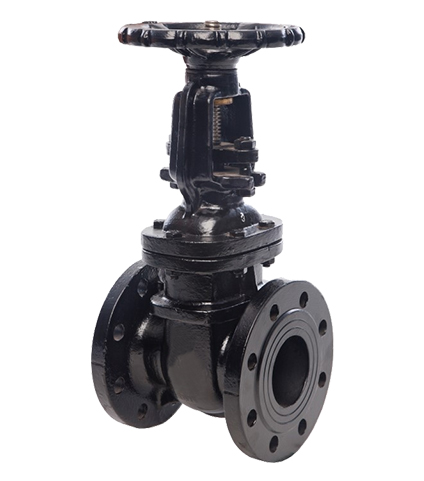

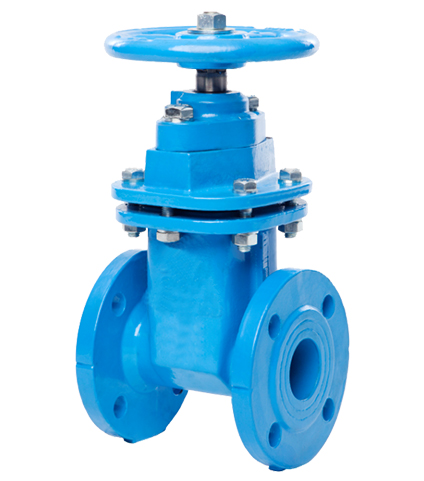

Metal seated valves are used for isolation purposes & main application will be in Water, wastewater & Sewage applications. Metal seated solid wedge design is available in both rising & non rising spindle.

The gate valve features two independent seating surfaces and is fully bi-directional. The body features a full free open passageway equal to the nominal line size to minimize pumping losses. The simple two moving component construction practically eliminates inadvertent damage. Valves are manufactured & tested accordance with BS 5150 & AWWA.

TAG – FEATURES

  • Robust low maintenance design
  • Valves can be manufactured with by-passes,, indicator as well as extension stems and floor stands
  • 100% full bore
  • Excellent corrosion resistance
  • Corrosion resistant
  • Coating fusion bonded epoxy minimum 300 microns inside & outside

TAG – SIZES

  • Stanadrd& pressure Rating From 50 mm to 3000 mm
  • Face to Face dimensions : EN 558 series, BS 5150 & BS 5163
  • Drilling standard : BS EN 1092-2 PN10/PN16/PN25/PN40
  • Pressure rating : PN 10 to PN 40
  • Pressure rating : PN 10 to PN 40

TAG – OPTIONS

  • Handwheel or Chainwheel or Cap or Operating Nut or Actuator.
  • With Gear, Handwheel or Chainwheel or Cap or Operating Nut or Actuator.
  • Without Gear, By Pass Valve, Handwheel or Chainwheel or Cap or Operating Nut or Actuator.
  • Position indicator
  • Locking device
  • Alternative Flange drilling
