Grooved Fitting products are made to withstand the most rugged applications while providing durable and easy installation, and ultimately, saving time and money on any project requiring grooved over the weld. They provide a rigid or flexible pipe connection for fire protection systems with dependable seals over a range of internal pressure situations.Grooved Fitting products are made to withstand the most rugged applications while providing durable and easy installation, and ultimately, saving time and money on any project requiring grooved over the weld. They provide a rigid or flexible pipe connection for fire protection systems with dependable seals over a range of internal pressure situations.

Grooved pipe couplings and fittings can be used to join and pipes in both wet and dry system. They provided some flexibility in terms of movement and deflection to the piping system. Grooved pipe fittings consist of grooved couplings, grooved fittings, grooved outlets, grooved valves, and grooved replacement parts. Grooved fittings are widely used in sprinkler risers, pipe feeds passing from one building area to another, locations prone to earthquakes, in discharge line above pump suction, in air or water fire services lines, piping system subject to excessive vibration, installation in tight spaces or where pipe alignment is difficult. Grooved pipe fittings are limited to use with rolled or cut groove pipe, valve, and fittings. These fittings are rated to 175 psi (1205 kPa) as a minimum. These couplings are FM approved and can be used in underground services. The maximum ambient temperature for these couplings is 225 deg F (107 deg C). Grooved fittings are cost-effective and designed for use in grooved-end pipe fire protection systems and related equipment. They are UL/FM listed. Grooved Couplings and fittings are designed to provide quick, secure and reliable solutions for joining pipe-to-pipe. A grooved piping system is the most versatile, reliable and economical piping system. It is much more reliable than a threaded or flanged connection and often results in two to four times faster installation. The system is designed to work with rolled or grooved pipes.

Advantages :

  • Cost Saving – Offers 30% cost saving
  • Every Joint is a Union – Each pipe joint is a flexible joint and removing the couplings allows removal of pipe for easy cleaning, servicing and maintenance. It also allows the flexibility to change the piping system and add/remove equipment.
  • Easy Installation – Grooved pipe couplings require creating either a rolled groove or a machine cut groove. They help in easy installability.
  • Minimize Noise and Vibration – Use of grooved pipe coupling isolates the noise and vibration.
  • Provide Expansion and Contraction – A grooved pipe joint allows for expansion and contraction of the pipe joint without compromising the integrity of the connection and eliminates the need for costly expansion joints.

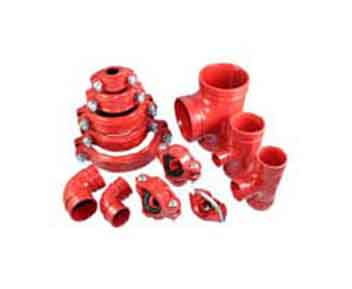

Painted - Grooved Fittings

Painted - Grooved Fittings
