Our products and offerings have been divided into various business units for your assistance. These business units have several categories. Water & Waste Water products is one of our more specialized branch of business unit. It deals with all the necessary products needed for wastewater management. It has pipes and pipeline accessories.

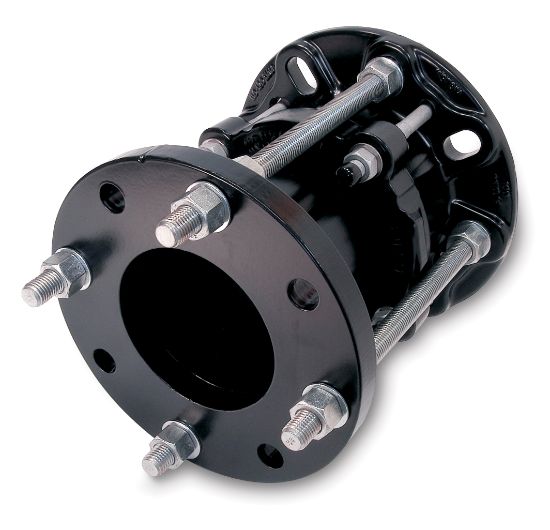

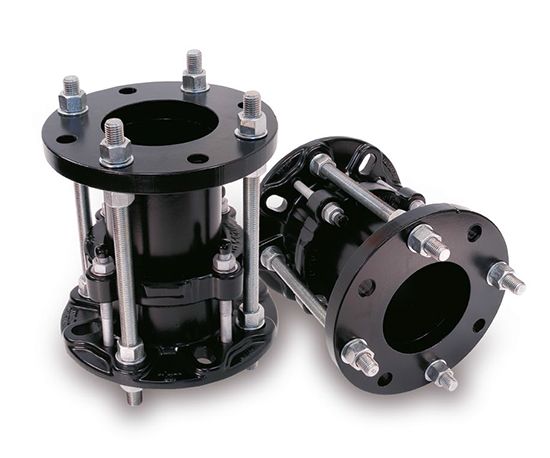

Dismantling Joints are a double flanged composite fitting featuring a telescopic action between a flanged spigot and flange adaptor. The joint is designed to provide longitudinal adjustment in flanged pipe accessories systems.
The Dismantling Joints provide a simple method for the installation and removal of flanged potable water valves, pumps, flow meters, flanged pipes, and pipe fittings.
Sizes: 50 - 2000NB
Working Pressure: 10/16/25 Bar*
The Dismantling Joints are double flanged fittings that accommodate up to 100mm longitudinal adjustment and can be locked at the required length with the tie bars supplied. This system allows fast, easy maintenance of valves, pumps or meters and also simplifies future pipe work modifications and reduces the downtime while alterations.
The installation process is very easy, It can be done with the help of just a spanner and torque wrench to tighten the high tensile steel or stainless steel tie bars. The presence of tie bars is less than flange holes and the tie bars acts as flange jointing bolts to speed up the process but it still offer a secure, rigid, fully end load resistant system with a pressure rating equal to that of the flange.
Dismantling Joints are a double flanged composite fitting featuring a telescopic action between a flanged spigot and flange adaptor. The joint is designed to provide longitudinal adjustment in flanged pipe accessories systems.
The Dismantling Joints provide a simple method for the installation and removal of flanged potable water valves, pumps, flow meters, flanged pipes, and pipe fittings.
Sizes: 50 - 2000NB
Working Pressure: 10/16/25 Bar*
The Dismantling Joints are double flanged fittings that accommodate up to 100mm longitudinal adjustment and can be locked at the required length with the tie bars supplied. This system allows fast, easy maintenance of valves, pumps or meters and also simplifies future pipe work modifications and reduces the downtime while alterations.
The installation process is very easy, It can be done with the help of just a spanner and torque wrench to tighten the high tensile steel or stainless steel tie bars. The presence of tie bars is less than flange holes and the tie bars acts as flange jointing bolts to speed up the process but it still offer a secure, rigid, fully end load resistant system with a pressure rating equal to that of the flange.
Features
- Full bore.
- Complete water tightness.
- According to ISO, UNE, DIN, NF, BS and AWWA standards.
- Fully corrosion resistant construction
- Non Toxic Blue fusion bonded epoxy coating
