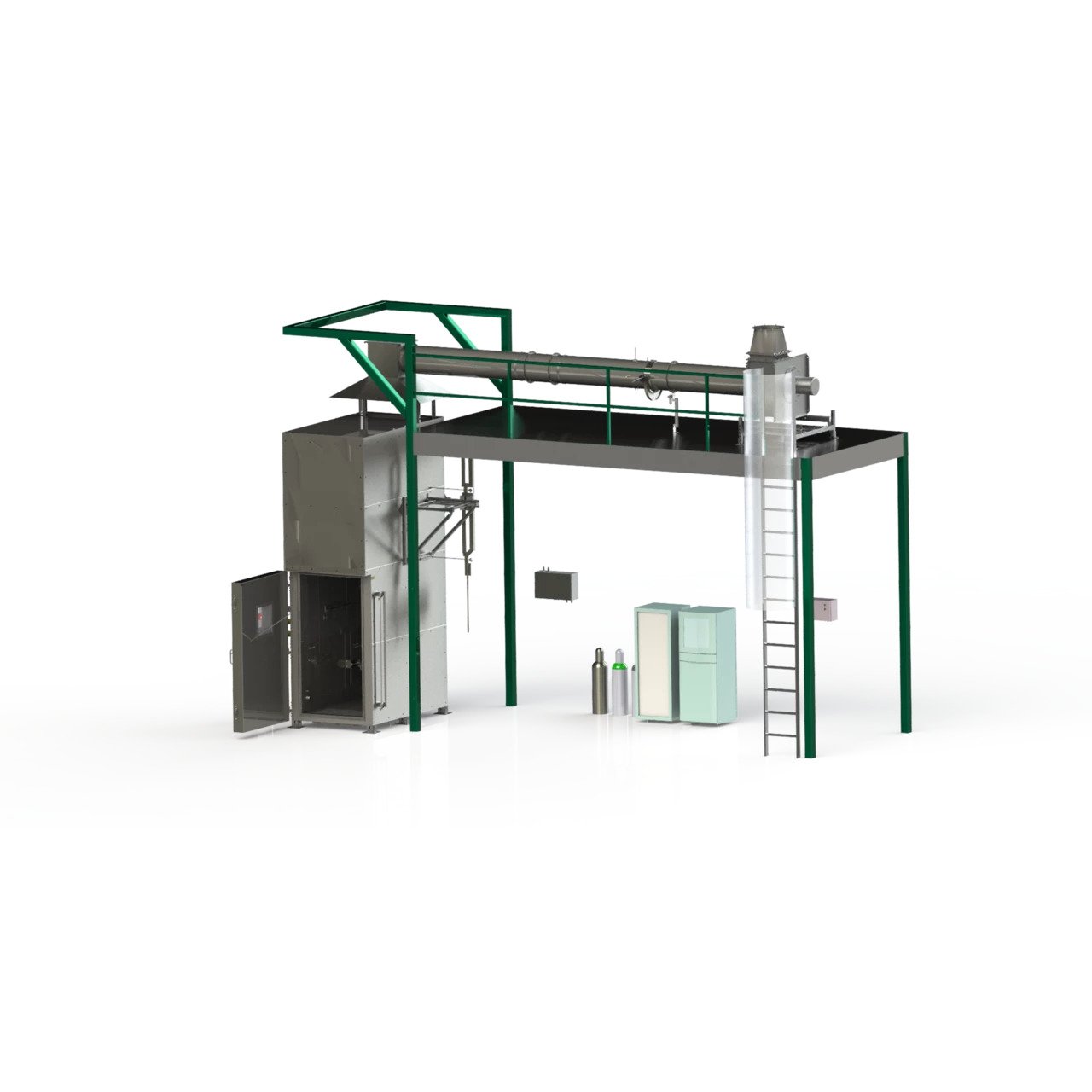

Introducing the Fire Testing System designed to assess heat release and smoke production during flame spread experiments on vertically mounted grouped cables and insulated wires, as per EN 50399 and IEC 60332-3-10 standards (testing apparatus).
The KBT 916 by NETZSCH TAURUS Instruments GmbH is an effortlessly operable solution that provides advanced control and data acquisition capabilities, all presented in an intuitive interface with comprehensive user guidance.
Navigating the system is a breeze with the high-resolution colour touch display featured on the "KBT Control" cabinet. This display enables seamless measurement and control through the integrated Single Board Computer, powered by the Windows operating system and KBT software.
Eliminate the hassle of manual controls like switches, controllers, or buttons; the testing system's status is clearly visible and it actively prevents critical operational errors.
The control unit takes charge of storing, analysing and recording all test-related data, eliminating any additional complexities.
Meticulously designed features, coupled with the utilisation of premium materials, ensure that the KBT 916 test system boasts an extended product lifespan while exhibiting minimal wear and tear.
FEATURES
- Comprehensive KBT test chamber setup with sample holder, hood, collector, measuring tube, burner, and sensors.
- Double-walled stainless steel test chamber with mineral wool insulation, featuring air supply and smoke extraction openings.
- Efficient sample holder mounting with rail guides, electric winch, and stainless steel fire-resistant door.
- Cable winch with electric drive and ramp for convenient sample transport.
- Exhaust gas fan with flow control ensures consistent exhaust gas flow.
- Data acquisition and process control modules included.
- Wide range of options and accessories for exhaust system enhancement and unit calibration.
- Stainless steel hood and collector for protection against aggressive gases.
- Measuring duct section equipped with bidirectional probe, thermocouples, light measurement system, and gas sampling probe.
- Ribbon propane burner with venturi mixer, igniter, flame detector, and stainless steel cover.
- Digital gas flow controller, pressure controller, and magnet valves for the gas installation.
- Supply and exhaust air process fans with frequency converters and digital control modules.
- "KBT Control" unit with SBC, Windows 10, 10.1" colour touch screen, SIEMENS gas analyzer, and various interfaces.
- Optional 19" PC rack, monitor, printer, and PC.
- Single licence for the KBT software included.
