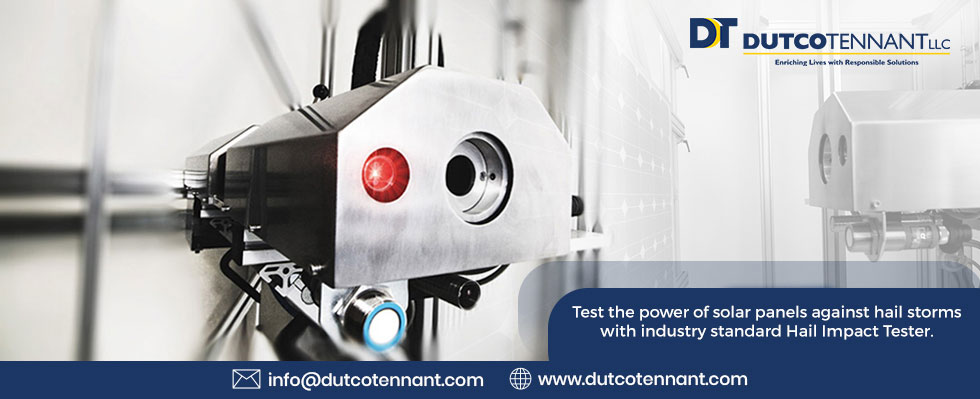

Hailstorms can cause severe damage to modules and collectors. Our test stand enables you to carry out tests according to international standards. The hail impact test stand uses an air-pressurized launcher which shoots ice balls representing hailstones of a predetermined size at the module or collector mounted on the support frame.
Features
- Air pressurized launcher
- X-Y-support for aiming on points defined by the standard
- Easy module installation
- Rapid changes between different hail stone sizes
- Ice ball production
- Laser speed measurement
- Ultrasonic distance measurement between launcher and target
Technical specifications
| Standard Test Area | 3 m x 1.8 m |
| Simultaneous Testing Capacity | 1 |
| Hail Stones | 9 |
| Standard Diamteters | 25, 35 and 45 mm |
| Velocity of Ice Balls | 10–40 m/s |
| Relevant Standards | IEC 61215, IEC 61646, EN 12975, ISO 9806 |
