HDMI Extenders/HDBT PoH Wall Plate Switchers / Extender Transmitters/HDBT PoH Receivers/SMART 4K 18G Extenders
Installing a display far from its video source can create challenges with cable length, signal quality and equipment placement. In conference rooms, auditoriums and control centres, HDMI Extenders provide a practical way to transmit high-resolution audio-visual signals over structured CAT6 cabling.
The HDMI over CAT6 portfolio covers different installation requirements through HDBaseT transmitters, receivers, wall plate switchers and SMART 4K 18G extension systems. These solutions accommodate point-to-point video transmission, convenient source connections and longer cable routes.
Depending on the selected model, the range supports 4K 60Hz video, multi-format source switching, USB connectivity and Power over HDBaseT (PoH). This flexibility enables AV designers to select equipment according to transmission distance, signal format and room functionality rather than relying on a single extension configuration.
Dutco Tennant LLC supplies professional HDMI Extenders for commercial, hospitality, educational and institutional audio-visual projects throughout the UAE and GCC.
HDMI Signal Extension & Video Transmission Capabilities
- 4K 18G Video Support - Selected extenders accommodate 4K 60Hz video with 4:4:4 chroma sampling for compatible audio-visual systems.
- CAT6 Transmission - Transfers HDMI signals over suitable twisted-pair cabling, reducing dependence on long passive HDMI cable runs.
- Model-Specific Extension Distances - Available solutions cover transmission distances of 35m, 40m, 50m, 70m and 100m.
- HDBaseT Connectivity - Compatible models use HDBaseT technology to carry audio-visual signals between transmitter and receiver endpoints.
- Digital Audio Transport - HDMI-embedded audio travels with the video signal through supported extension connections.
- Point-to-Point Distribution - Dedicated transmitter and receiver combinations establish direct links between source equipment and displays.
- High-Resolution Display Integration - Suitable for compatible commercial monitors, presentation displays, projectors and other HDMI-equipped devices.
Connection Interfaces & Installation Architecture
- Wall Plate Transmitters - Integrate source connections into meeting-room walls, lecterns or presentation areas.
- Multi-Format Input Options - Selected products accept HDMI alongside USB-C, DisplayPort or VGA sources.
- Power over HDBaseT - Compatible PoH configurations simplify endpoint power arrangements when paired with supported equipment.
- USB Extension - Certain models incorporate USB connectivity for conferencing and peripheral applications.
- Compact Receiver Hardware - Dedicated receiver units can be positioned near displays or within suitable AV installations.
- Source Switching - Selected wall plate transmitters combine input selection and HDMI extension in one device.
- Structured Cabling Integration - CAT6-based transmission provides a practical connection method for appropriately planned commercial AV infrastructure.
Types
KD-XWPS – HDMI & USB-C Wall Plate Extender Set
- Combines HDMI and USB-C source connectivity within a wall plate extension solution.
- Transmits compatible audio-visual signals over CAT6 up to 50 metres.
- Appropriate for presentation environments requiring convenient access to multiple source formats.

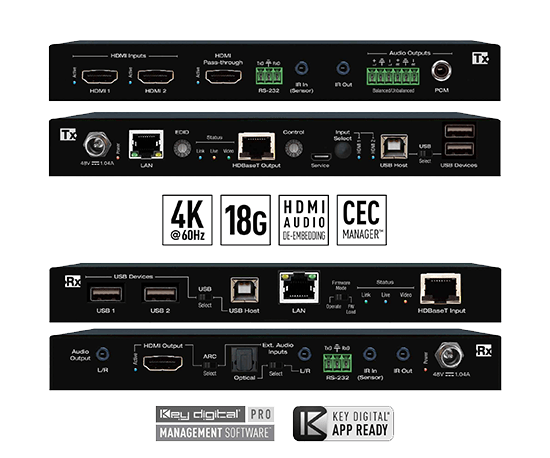

KD-XPS22U – HDBaseT Extender & Switcher Set
- Combines the KD-PS22UTx transmitter with the KD-X100MRx receiver.
- Provides HDMI extension over CAT6 up to 100 metres.
- Intended for professional presentation and unified communications installations.

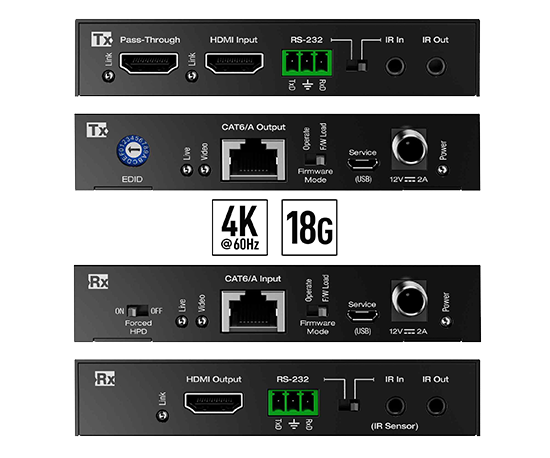

KD-X444LP – 70m CAT6 Extender
- Provides HDMI extension over CAT6 up to 70 metres.
- Accommodates compatible 4K 18G video transmission.
- Appropriate for display connections requiring a longer cable route.
KD-X444SP – 50m CAT6 Extender
- Extends compatible HDMI signals up to 50 metres.
- Offers a dedicated transmitter-and-receiver solution for commercial AV equipment.
- Useful for meeting rooms and display installations with moderate transmission distances.

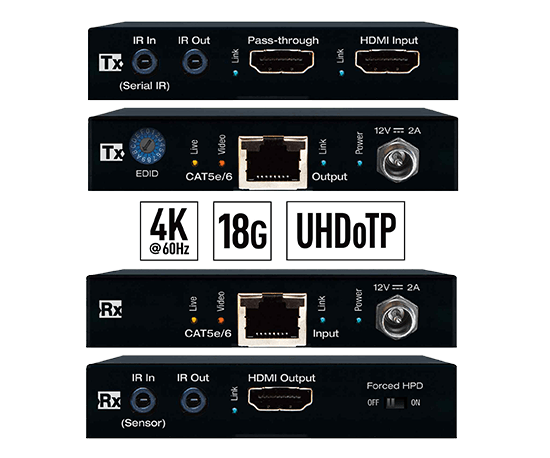

KD-EX18G – 35m CAT6 Extender
- Provides a compact solution for HDMI extension up to 35 metres.
- Accommodates compatible 4K 18G video signals.
- Suitable for shorter structured-cabling routes where a passive HDMI cable is impractical.
KD-X444S – 40m HDBaseT Extender
- Uses HDBaseT technology for HDMI transmission over CAT6.
- Provides an extension distance of up to 40 metres.
- Appropriate for professional AV installations requiring HDBaseT connectivity.

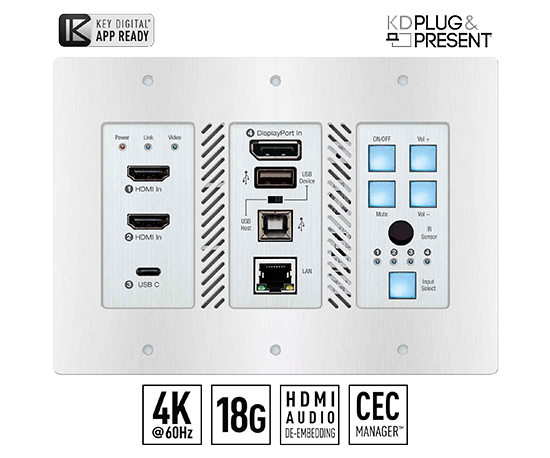

KD-X4x1WUTx – Four-Input Multi-Format Wall Plate Transmitter
- Combines four input connections with integrated source switching.
- Supports USB 2.0 connectivity for compatible AV and conferencing applications.
- Provides HDBaseT transmission over CAT6 up to 100 metres.
KD-X2x1WDTx – HDMI & DisplayPort Wall Plate Transmitter
- Accommodates HDMI and DisplayPort source connections.
- Transmits compatible signals over CAT6 using HDBaseT technology.
- Provides an extension distance of up to 40 metres.
KD-X2x1WVTx – HDMI & VGA Wall Plate Transmitter
- Accepts HDMI and VGA sources for environments using different generations of AV equipment.
- Uses HDBaseT transmission over CAT6 up to 40 metres.
- Appropriate for presentation spaces retaining legacy VGA connectivity.

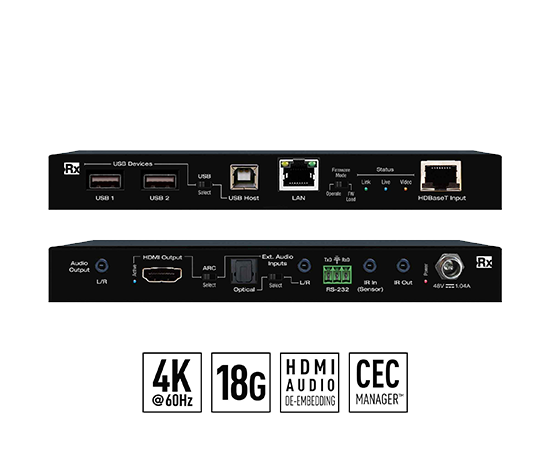

KD-X100MRx – 100m HDBaseT Receiver
- Receives compatible HDBaseT signals over CAT6 up to 100 metres.
- Intended for supported unified communications and collaboration configurations.
- Pairs with suitable transmitters within Key Digital extension systems.
KD-X40MRx – 40m HDBaseT Receiver
- Provides a receiver endpoint for compatible 40-metre HDBaseT installations.
- Supports suitable audio-visual connectivity within unified communications environments.
- Offers a compact receiving solution for compatible wall plate transmitter systems.
Standout Features & Benefits
Position Displays Beyond Standard HDMI Cable Runs
- Connect audiovisual equipment across larger rooms and building areas.
- Place source devices in secure cabinets while keeping displays at the required viewing locations.
- Accommodate cable routes that would be impractical for conventional passive HDMI connections.
Simplify Meeting Room Connectivity
- Provide accessible source connections through suitable wall plate transmitters.
- Reduce loose cabling around conference tables and presentation areas.
- Accommodate different laptop output formats through selected multi-input models.
Support Modern & Existing Presentation Equipment
- Connect HDMI and DisplayPort sources through compatible multi-format transmitters.
- Retain VGA connectivity where older presentation equipment remains in service.
- Reduce the need for separate input-conversion devices in appropriately configured installations.
Combine AV Extension with Conferencing Requirements
- Use selected USB-enabled extenders for compatible conferencing peripherals.
- Establish connections between presentation devices and remotely positioned AV equipment.
- Integrate suitable HDMI extension hardware into unified communications room designs.
Reduce Endpoint Installation Complexity
- Use supported PoH configurations to minimise separate power connections.
- Position compact receivers close to wall-mounted displays or projectors.
- Incorporate extension equipment into planned CAT6 cabling infrastructure.
Match Transmission Distance to the Project
- Select shorter-range models for local presentation and display connections.
- Specify longer-range HDBaseT solutions where equipment is installed farther apart.
- Avoid unnecessary hardware complexity by choosing the extension technology appropriate to the required signal path.
Application Areas
Corporate Conference Rooms
- Connect presentation laptops to displays positioned away from the meeting table.
- Use multi-format wall plate transmitters for convenient source selection.
Training Rooms & Educational Facilities
- Extend instructor workstation video to projectors or large-format displays.
- Accommodate HDMI and compatible legacy presentation sources.
Hotels & Convention Centres
- Connect audiovisual equipment between lecterns, control positions and presentation screens.
- Provide flexible input access in conference and function rooms.
Control Rooms & Monitoring Facilities
- Position source equipment away from operator displays.
- Establish dedicated HDMI connections through planned CAT6 routes.
Digital Signage Networks
- Connect media players to commercial displays installed at remote locations.
- Keep playback equipment in accessible service areas.
Healthcare Training Centres
- Transmit instructional video from training equipment to presentation displays.
- Connect suitable conferencing and multimedia devices through compatible extension systems.
Government & Institutional Buildings
- Establish structured AV connections in boardrooms and multipurpose facilities.
- Integrate wall plate transmitters into formal meeting spaces.
Retail Showrooms
- Connect demonstration sources to remotely positioned display screens.
- Maintain high-resolution product presentations across suitable showroom layouts.
Auditoriums & Lecture Halls
- Extend video from presentation desks to projectors positioned farther away.
- Use suitable HDBaseT solutions for longer point-to-point signal paths.
Unified Communications Rooms
- Connect compatible presentation equipment and conferencing peripherals.
- Use selected USB-enabled transmitters and receivers within supported collaboration systems.
HDMI Extenders in the UAE
- HDMI Extenders provide long-distance 4K audiovisual connectivity for meeting rooms, digital signage, control rooms and commercial AV installations across the UAE.
- Assess transmission distance, video resolution, CAT6 cable quality, HDBaseT compatibility, input formats and PoH requirements when choosing HDMI over CAT6 extenders.
- Dutco Tennant LLC supplies Key Digital HDMI Extenders, HDBaseT transmitters and receivers for professional audiovisual projects throughout the UAE and GCC.
