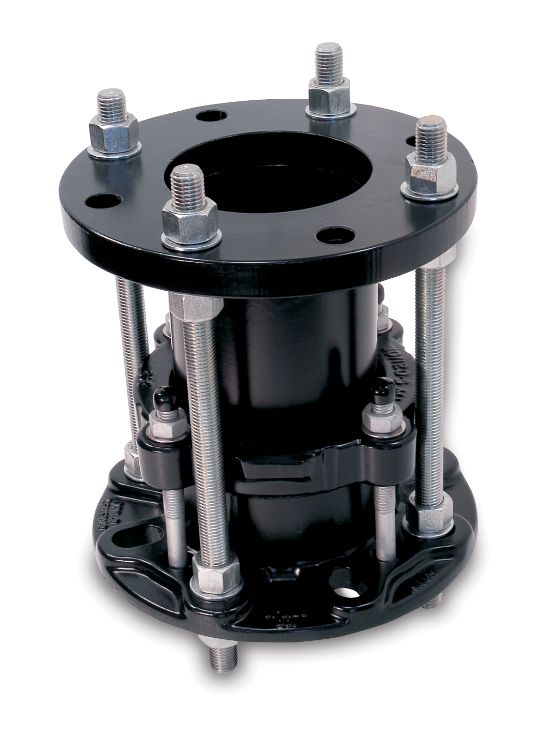

Dismantling Joint assembly is a double flanged composite fitting featuring a telescopic action between a flanged spigot and a flange adaptor. The joint is designed to provide longitudinal adjustment in flanged pipe systems. Dismantling Joints provide a simple method for the installation and removal of flanged valves, pumps, flow meters, flanged pipes and pipe fittings. Tie rods are provided for final anchoring and location and these also double as mating flange jointing bolts, reducing the number of these required.
The Dismantling Joint range extends from 50mm to 2000mm and with the flange ratings of PN10/16, all common drillings are available in pressures up to 40 BAR. We can also meeet to specific customer specifications and dimensions on request.
