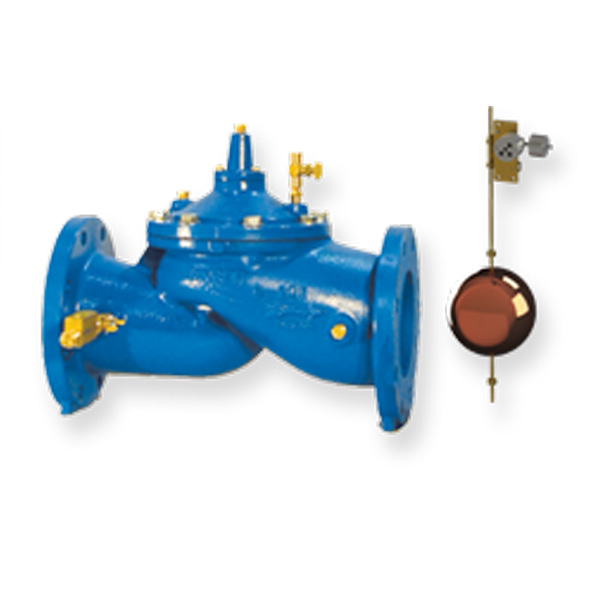

Non-modulating float valve - cast iron is suitable for allowing normal forward flow for filling the reservoirs of water up to a desired high level and where the valve and pilot of the reservoirs can be accessed easily. The valve works as a two-position valve that is either closed or open. The valve stays closed when the level of the reservoir drops unless the float reaches a pre-determined minimum adjustable level of the reservoir. These valves are highly based on the main valve and are ideal for allowing normal flow in the forwarding direction for filling the water reservoirs up to a desired high level and where the valve and the pilot of the reservoirs can be accessed with ease. The valve works as a two-position valve that is either closed or open. The valve stays closed when the level of the reservoir drops unless the float reaches the adjustable pre-determined minimum level of the reservoir.
The non-modulating float valve - cast iron valves are mostly dependent on the PG primary valve. They are ideal for making way for forwards flow for filling the reservoirs of water up to a desired high level and where the valve and pilot of the reservoirs can be accessed easily. The valve works as a two-position valve that is either closed or open. These valves are conventionally used in buildings having tanks of reservoirs or installations in places where the pilot and valve can be accessed with ease. The on/off service makes sure that the contents of the reservoir are cycled. This can also prevent the over-cycling of the pumps supplying as the minimum amount per cycle can be adjusted.
Features –
- Drip-tight close, so no overflow
- Drawdown can is adjustable
- Level settings are easily adjustable
- Options for low supply pressure
Dutco Tennant LLC can get you the most advanced range of non-modulating float valve - cast iron valves from the biggest manufacturers of the world right here in the Middle East. They are highly reliable and offer the best in range performance for all your plumbing requirements.
Features
- No overflow, drip-tight close
- Adjustable draw down
- Easily adjustable level settings
- Low supply pressure options
Technical Data
| Operating Pressure | Threaded = 400psi (27.6 bar) 150 Flanged = 250psi (17.2 bar) 300 Flanged = 400psi (27.6 bar) |
|---|---|
| Operating Temperature | Buna-N: 160°F (71°C) Maximum EPDM: 300°F (140°C) Maximum Viton®: 250°F (121°C) Maximum Epoxy Coating**: 140°F (60°F) Maximum |
