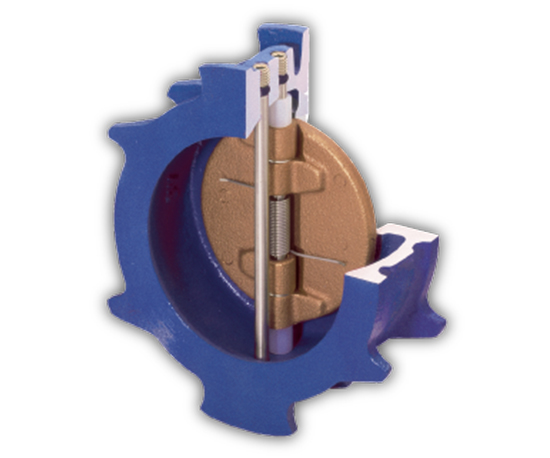

Wafer Check Valve Water & Waste Water products
Wafer Check Valve Sewage

The main difference between standard swing check valves and wafer check valve is that the wafer types do not have the full-bodied arrangement. When the valve opens, the disc is forced into the top of the pipeline. Due to a very short face-to-face dimension the body has a reduced bore. Swing type wafer check valve is virtually maintenance free, the disc is self-centering and protected and it has a special limit stop to protect against sewage pipeline damage.

Features

  • Small and simple design.
  • Minimal wear on moving parts
  • Light Weight
  • Reduced Bore

Material Specification

  • Body : Ductile Iron / Cast Iron
  • Cover : Ductile Iron / Cast Iron
  • Flaps : Ductile Iron /
  • Internal, external bolts, nuts : Stainless Steel / Galvanized Steel
  • Sizes : DN 40 – DN 600
  • Pressure rating : PN10/16/25
  • Hydraulic Test : 1.1xPN for Seat & 1.5xPN for Body
  • Coating : Nontoxic Epoxy Internally & Externally
