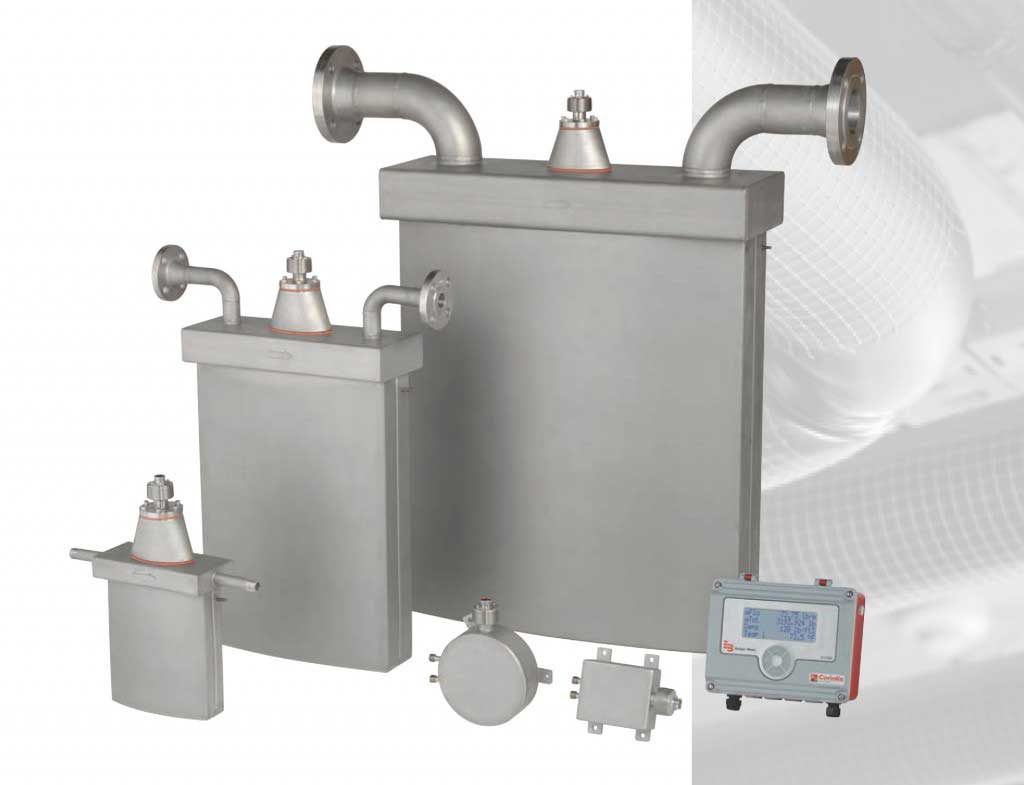

The Coriolis mass flow meter identifies flow rate by directly measuring mass flow and density of fluids over a wide range of process temperatures with a high degree of accuracy. For homogenous fluids consisting of two components like sugar and water, the Coriolis system can derive the concentration and mass of each component based on fluid properties and density measurement. Furthermore, the unobstructed, open flow design makes it suitable for a variety of fluids such as slurries and other viscous, nonconductive fluids that are difficult to measure with other technologies.
TECHNICAL DATA
| SENSOR | ||
|---|---|---|
| WETTED MATERIALS | 316L SS | |
| TEMPERATURE | FLUID RANGE | -40°C TO 200°C |
| ACCURACY | ± 1°C | |
| REPEATABILITY | 0.3°C | |
| PROCESS CONNECTIONS | 1/4" | NPT, FSF, FSM |
| DN15 - DN80 | NPT, DIN flange PN40 ANSI flange 150 lb and 300 lb Tri-Clamp® | |
| PRESSURE | UPTO 190 BAR | |
| CONFORMANCE | ASME B31.3 PRESSURE PIPING HYDRO TEST NACE MR0175/ISO 15156 | |
| REPEATABILITY | ±0.05% OF READING ± ZERO STABILITY | |
| TRANSMITTER | ||
| ENCLOSURE | NEMA 4(IP-65); POWEDER COATED ALUMINUM,POLYCARBONATE, URETHANE & SS | |
| POWER REQUIREMENTS | 115/230V AC / 20…28V DC | |
| AMBIENT TEMPERATURE | -10°C TO 70°C | |
| CONFIGURATION | FOUR BUTTON HMI, RCT CONSOLE | |
| DISPLAY | 4 LINE X 20 CHARACTER,ALPHA NUMERICAL,DOT MATRIX, LCD BACKLIGHTING | |
| RTD INPUT | BUILT IN 100 OHM 3 WIRE PLATINUM RTD INPUT | |
| CALIBRATION | FACTORY WET CALIBRATION CERTIFICATE PROVIDED | |
| ANALOG I/O | OUTPUTS | THREE 4-20 MA |
| INPUTS | INPUTS TWO 0-5VDC INPUT | |
| DIGITAL I/O | OUTPUTS | FOUR 5…28V DC, 50 MA MAX CURRENT DRAW (EXTERNAL PULLUP RESISTOR REQUIRED) |
| INPUTS | FOUR 5…28V DC, 1 K OHM IMPEDANCE | |
| COMMUNICATION | MODBUS RTU(EIA-485/RS485), MODBUS TCP/IP & ETHERNET/IP | |
| CONFIGURATION PORT | USB 2.0 INTERFACE | |
| ALARMS | SIX HI/LO ALARMS ALARM STATUS ON DISPLAY BY DEFAULT, ASSIGNABLE TO DIGITAL I/O (LIMIT 2 OR 4) AND AVAILABLE VIA DIGITAL COMMUNICATIONS | |
| TRANSMISSION DISTANCE | UPTO 100 FEET | |
| OTHER FUNCTIONS | BATCH CONTROL, PID CONTROL, USER CONFIGURATION OF ALL I/O FUNCTIONS | |
| MEASUREMENTS | FORWARD AND REVERSE MASS FLOW AND TOTAL, DENSITY, TEMPERATURE; CONCENTRATION, VOLUMETRIC FLOW AND TOTAL (DERIVED | |
