Dry Barrel Hydrants Infrastructure & Pumping Station Networks

Description

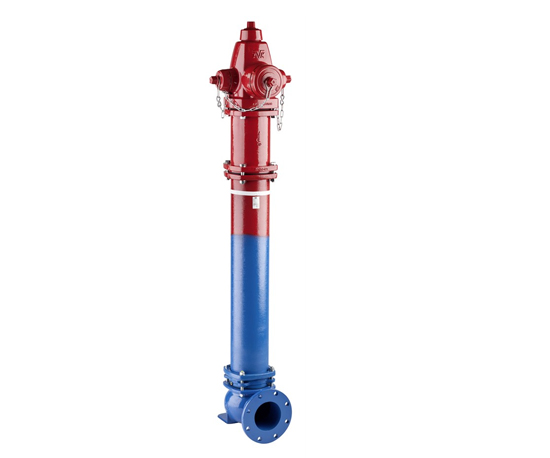

Dry barrel hydrant - Modern type to AWWA C502 - UL listed - FM approved for fire protection application

AVK dry barrel hydrants are designed with a traffic flange for easy repair after collision. The hydrant’s main valve has a ductile iron core which is fully encapsulated in EPDM rubber. The nozzle section can be rotated 360 degrees. The upper section of the hydrant is repairable under pressure.
Social Media Share
. . . .
0/5 (0)

My Rating Form

  • UL/ULC listed and FM approved
  • Meets or exceeds AWWA C502 (latest)
  • High pressure rating (250 psi)
  • 2 x 2.5" NST hose nozzles + 1 x 4" NST pumper nozzle
  • The breakable flange and stem rod coupling ensure no leaking and easy repair at traffic knock down
  • Ductile iron nozzle section, barrel section, bonnet, and base
  • 5.25" valve opening for high flow rating
  • Hydrant drain easily plugged if required - may be plugged internally or externally
  • Extensions available in lengths from 6" to 60"
  • Inlet shoe also available in DN 100, and flange drilling also in PN 10/16 (DN 100 not UL/FM approved)
  • 1 1/2" pentagon operating nut
  • Epoxy coating according to DIN 30677-2
