Lubricant Easy Bar for High-Temperature Industrial Applications

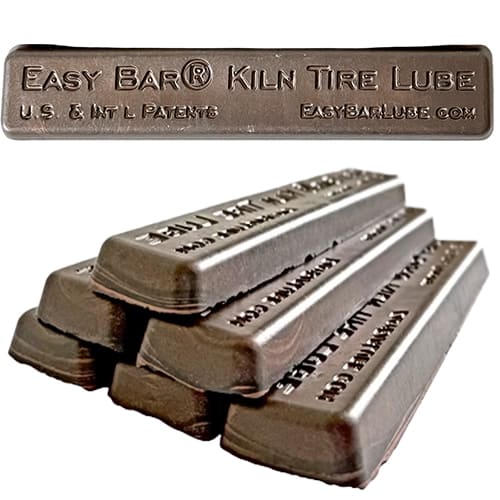

Rotary kilns, dryers, and calciners operate under extreme heat and continuous mechanical load, making tire bore lubrication one of the most critical maintenance tasks in cement and mineral plants. The lubricant easy bar is a solid polymer bar placed between the tire bore and kiln shell, melting on contact and distributing lubricant evenly across filler bars, wear pads, and riding rings through the kiln's own rotation.
Minimises wear on tire retainers, riding rings, and support pads in calciners, dryers, cement, and mineral plants. Reliable, clean, and efficient lubrication. We supply the Easy Bar range across 9210 and 9213 configurations, covering standard rotary kiln applications through to high-load, high-temperature operations requiring Almasol EP additive protection.
At Dutco Tennant LLC, our solid lubricant bars and industrial lubricant bars to cement plants, mineral processors, and heavy industrial operators across the UAE and GCC, sourced from established international manufacturers specialising in high-performance industrial lubrication solutions.
Built to Perform Under Pressure
- Easy bar lubricant melts cleanly at operating temperature, distributing lubricant across the full tire bore contact surface without residue.
- Prevents steel-on-steel contact between the kiln shell and riding ring, protecting filler bars, wear pads, and stop blocks from accelerated wear.
- Reduces shell ovality by maintaining consistent lubrication across the tire bore during thermal expansion and contraction cycles.
- Non-corrosive and non-hazardous formulation suits regular handling and application in high-temperature industrial environments.
- Applied by hand or with an insertion tool, reducing direct technician exposure to extreme kiln heat during routine maintenance.
Technical Attributes Worth Specifying
- Controlled Melt Point: Solid polymer binder melts at operating temperature, releasing mineral and metal lubricants evenly across filler bars and the tire bore contact surface.
- High Auto-Ignition Threshold: Bar does not auto-ignite below extremely high temperatures, protecting kiln operators and surrounding equipment.
- Almasol EP Additive: Proprietary solid wear-reducing additive in the 9210 formulation withstands heavy loads, forming a microscopic protective layer on metal surfaces.
- Zero Residue Formula: Polymer binder burns off cleanly during application, leaving no build-up on filler bars, riding rings, or refractory surfaces.
- Insertion Tool Compatible: Works with the Easy Bar insertion tool for safe uphill-side application while the kiln is in full operation.
Types
Easy Bar 9210
An advanced lubricant easy bar with Almasol EP additive for superior wear protection in high-load, high-temperature rotary kiln operations.
- Almasol additive forms a microscopic protective layer on metal surfaces without affecting component clearances
- Recommended for kilns operating under heavy continuous loads with elevated wear on filler bars and riding rings
- Provides extreme pressure protection beyond the standard Easy Bar formulation
Easy Bar 9211
A solid lubricant bar for moderate to heavy-duty rotary kiln and calciner applications requiring enhanced lubrication performance under sustained thermal and mechanical stress.
- Suitable for lime calciners, mineral processing kilns, and chemical rotary dryers
- Provides consistent lubrication coverage across filler bars, wear pads, and riding rings
- Applied by hand or insertion tool while kiln remains at full operating temperature
Easy Bar 9212
An easy bar lubricant for high-temperature metallurgical, waste-to-energy, and industrial processing kilns operating under intense continuous rotation.
- Maintains lubricant integrity under extreme thermal and mechanical stress conditions
- Suits smelters, annealing furnaces, and high-temperature calciners across heavy industrial facilities
- Reduces friction in operations where standard lubricants break down under sustained heat
Easy Bar 9213 — Standard Formulation
A solid lubricant bar for conventional rotary kiln and dryer tire bore lubrication across standard operating temperature and load conditions.
- Mineral and metal lubricants in solid polymer binder for clean, residue-free application
- Suitable for cement plants, lime kilns, and mineral processing rotary dryers
- Applied by hand or insertion tool while kiln is at operating temperature
Standout Features & Benefits
Clean and Residue-Free Application
- Polymer binder melts completely at operating temperature leaving no contamination on refractory or filler surfaces
- No spillage or grease contamination compared to liquid lubrication methods
- Solid bar format simplifies handling during routine kiln maintenance
Safe for High-Temperature Environments
- High auto-ignition threshold protects kiln operators and surrounding equipment during bar insertion
- Insertion tool maintains safe working distance from the kiln heat zone
- Non-corrosive and non-hazardous formulation reduces personnel risk in hostile operating environments
Protects Critical Kiln Components
- Consistent lubrication prevents steel-on-steel contact damaging filler bars and wear pads
- Minimises shell ovality by supporting the riding ring during thermal expansion cycles
- Extends refractory life by reducing mechanical stress transmitted through the kiln shell
Fast and Simple to Apply
- Applied directly by hand or insertion tool while the kiln remains in full operation
- No plant shutdown or specialist equipment required for routine easy bar lubricant application
- Takes significantly less time than traditional liquid industrial lubricant bars methods
Application Area
Cement and Lime Plants
- Lubricates the tire-to-shell interface on cement and lime rotary kilns under continuous heavy load
- Protects riding rings, filler bars, and stop blocks from scoring and accelerated wear
- Almasol formulation suits the high-load, high-temperature conditions of cement kiln operations
Mineral and Chemical Processing
- Maintains lubrication in high-temperature calciners processing minerals, ores, and chemical compounds
- Solid lubricant bars protect support rollers and wear pads in continuous processing operations
- Suitable for lime calciners, ore roasters, and chemical rotary dryers across GCC industrial facilities
Pulp and Paper Mills
- Lubricates rotary dryer tire bores operating at lower temperatures typical of paper drying processes
- Reduces unplanned maintenance on dryer riding rings and support roller surfaces
- Standard 9213 formulation covers moderate load and temperature conditions in paper mill dryers
Metallurgical and Waste-to-Energy Plants
- High-temperature formulation maintains lubricant integrity in smelters and annealing furnaces
- Industrial lubricant bars suit the extreme heat and abrasive conditions of metallurgical processing
- Protects rotating components in waste-to-energy combustion chambers and rotary kilns
FAQ
How do solid lubricant bars improve kiln maintenance?
They provide consistent lubrication between tire bores and kiln shells, reducing wear on filler bars, riding rings, and support pads under high-temperature conditions.
Can the Easy Bar lubricant be applied while the kiln is in operation?
Yes, the solid bar format allows safe application during full operation, eliminating the need for shutdowns.
What advantages do industrial lubricant bars offer over traditional liquid lubricants?
They ensure residue-free application, minimise contamination, and maintain consistent lubrication even in extreme heat and mechanical load conditions.
How do solid lubricant bars protect critical kiln components?
They prevent steel-on-steel contact, reduce mechanical stress, and help stabilise the tire-to-shell interface during thermal expansion and contraction cycles.
Are industrial lubricant bars suitable for all kiln sizes?
Yes, bar quantities and dimensions can be tailored to small dryers, large cement kilns, and mineral processing kilns for effective lubrication coverage.
How does Easy Bar lubricant support technician safety?
Using the bars with an insertion tool reduces direct exposure to extreme heat, allowing precise and safe uphill-side application.
