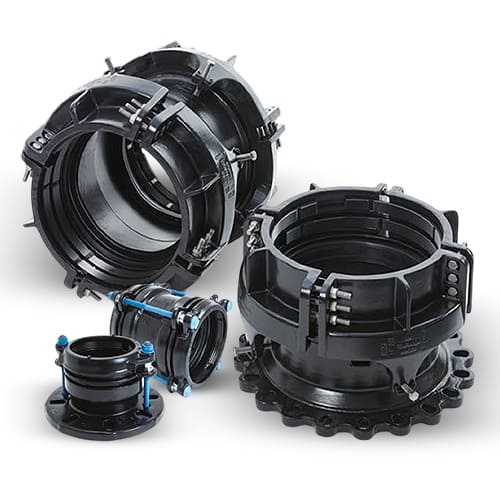

Mechanical Pipe Fittings, Ductile Iron and Flanged Solutions for Pipelines
Pipeline systems handling potable water, wastewater, and high-pressure industrial fluids demand connection components that hold under sustained load without seepage or structural fatigue. Mechanical pipe fittings address this requirement by providing leak-proof, bolt-secured joints that accommodate misalignment, angular deflection, and field conditions that welded or rigid connections cannot.
Trusted mechanical pipe fittings for water, industrial, and fire protection systems. Durable, leak-proof solutions built for high-pressure performance. The range covers mechanical joint fittings, flanged fittings, dismantling joints, and flange adaptors across diameter sizes from DN 50 to DN 2000.
At Dutco Tennant LLC, we source premium Mechanical Fittings from globally certified manufacturers and supply them across municipal, industrial, and infrastructure projects throughout the UAE and GCC.
Why These Fittings Are Specified First
- Ductile iron mechanical fittings carry pressure ratings of 150, 250, and 350 psi, covering low-rise distribution mains through high-pressure transmission pipelines in a single product family
- EPDM rubber gaskets certified to ISO 4633 provide a watertight seal suitable for potable water up to 50°C without secondary sealing compounds
- Mechanical joint pipe fittings accommodate minor pipe misalignment and angular deflection during installation, reducing the need for precise field alignment
- Cement mortar lining to ANSI/AWWA C104 protects internal surfaces from corrosion and maintains consistent Hazen-Williams flow coefficients across the service life
- External coatings including asphaltic, epoxy, polyethylene, and Rilsan Nylon 11 finishes protect buried and exposed fittings against soil corrosion, chemical attack, and mechanical damage
System Capabilities Worth Knowing
- Joint Configuration Range: Fittings are available in mechanical joint, push-on, flanged, and restrained joint configurations, covering the full spectrum of connection requirements in a single sourced range
- Material Compliance: Sand-cast to EN 545:2010 and manufactured to AWWA C110/C153 standards, with NSF-61 and NSF-372 certification for contact with potable water
- Pressure Endurance: Flanged ductile iron fittings in sizes DN 100 to DN 600 achieve 350 psi working pressure with special annular ring gaskets
- Bolt Hardware: Tee-head alloy steel bolts with heavy hex nuts are supplied with each mechanical joint socket, with fluoropolymer-coated options available for aggressive soil environments
- Size Compatibility: Fitting outside diameters conform to standard mechanical joint and push-on joint pipe dimensions, ensuring drop-in compatibility with existing infrastructure
Types
DI Pipe Mechanical Joint Fittings
DI pipe mechanical joint fittings use a bell socket, plain rubber gasket, and restraining gland compressed by tee-head bolts to create a flexible, pressure-rated pipe connection.
- Available in bends, tees, reducers, caps, and plugs to cover every directional and branching configuration in a pipeline layout
- Pressure ratings reach 350 psi for sizes DN 50 to DN 600 and 250 psi for DN 750 to DN 1200, conforming to ANSI/AWWA C153/A21.53
- Cement-lined and seal-coated as standard, meeting NSF-61 requirements for use in drinking water distribution systems
Flanged Ductile Iron Fittings
Flanged ductile iron mechanical fittings feature faced and drilled flanges conforming to ANSI B16.1 Class 125 or AWWA C110, allowing bolted connection to valves, pumps, and flanged pipeline components.
- Long-radius elbows, reducing tees, eccentric reducers, and side-outlet fittings are available in the flanged configuration for complex pipeline arrangements
- Tapped bosses can be cast integrally into fittings for instrument connection points, eliminating the need for field-drilled branch connections
- Working pressure ratings of 150 to 250 psi are standard, with 350 psi achievable in DN 100 to DN 600 sizes using annular ring gaskets
Dismantling Joints
Dismantling joints are double-flanged composite fittings with a telescopic action between a flanged spigot and a flange adaptor, providing longitudinal adjustment in flanged pipe systems.
- The telescopic action accommodates up to 100mm of axial adjustment, simplifying the installation and future removal of valves, pumps, and flow meters without cutting pipework
- Tie rods serve as both anchoring elements and mating flange bolts, reducing the total hardware count while delivering a fully end-load-resistant, pressure-rated connection
- The range covers DN 50 to DN 2000 with PN 10/16 flange ratings and pressure capacity up to 40 bar, conforming to AWWA C219 and BS EN ISO 9001
Flange Adaptors for DI Pipes
Flange adaptors for DI pipes connect plain-end ductile iron or steel pipe directly to 125 lb. faced and drilled flanges on pumps, valves, and other flanged equipment without requiring a machined pipe end.
- A mechanical joint type gasket is integral to the adaptor assembly, eliminating the need for a separate flange gasket and reducing installation components
- Anchor pins and set-screw configurations are available for rigid connections where end-load restraint is required at the flange interface
- Rilsan Nylon 11 and epoxy external coatings are available, providing corrosion resistance suited to buried, submerged, and chemically aggressive environments
Mechanical Joint Pipe Fittings for Fire Protection
Mechanical joint pipe fittings in the fire protection configuration are rated for the sustained and surge pressures generated by fire pump sets and suppression system activation.
- Grooved-end and flanged configurations connect directly to fire pump outlets, sprinkler risers, and hydrant branch lines within a single product family
- Fluoropolymer-composite-coated bolts and nuts resist corrosion in wet-barrel and buried hydrant installations over extended service intervals
- NSF-61 certified internal linings ensure fittings installed in combined potable and fire water systems meet drinking water contact standards
Standout Features & Benefits
Pressure Integrity Across All Diameters
- Hydrostatic testing at the works to EN 545:2010 and AWWA C153 verifies each fitting's leak-tightness before dispatch, covering air and water test procedures
- EPDM gaskets rated for potable water service maintain their compression set and sealing performance across full pressure cycling in transmission and distribution systems
- Restrained joint configurations resist axial thrust forces generated at bends, tees, and reducers without requiring concrete anchor blocks in most burial conditions
Corrosion Protection for Long Service Life
- Internal cement mortar lining maintains a Hazen-Williams coefficient between 130 and 151 throughout service life, sustaining hydraulic efficiency without relining intervention
- External zinc-based metallic coating to EN 15189 provides cathodic protection in aggressive soils, supplemented by polyethylene sleeving where soil conditions demand additional isolation
- Epoxy heavy-duty external coating to EN 14901 is available for fittings installed in chemically aggressive industrial or coastal environments
Installation Efficiency in the Field
- Dismantling joints reduce valve and pump removal time from hours to minutes by eliminating the need to cut and rejoin pipework during maintenance operations
- Top-hung suspension and gland bolt sequencing for mechanical joint connections follows a standardised alternating tightening procedure, requiring only common hand tools
- Push-on joint fittings with EPDM gaskets allow pipe assembly to proceed in wet trench conditions without compromising gasket seating or seal integrity
Standards Compliance Across Applications
- Fittings conform to EN 545:2010, ISO 2531, AWWA C110, AWWA C153, and ANSI B16.1 across the range, covering European, international, and North American project specifications
- NSF-61 and NSF-372 certification covers all fittings intended for potable water contact, satisfying municipal authority approval requirements in the UAE and GCC
- Flange adaptors for DI pipes and dismantling joints manufactured under ISO 9001:2008 quality management systems carry WRAS approval for use with potable water in applicable markets
Application Area
Municipal Water Supply and Distribution
- Mechanical joint bends, tees, and reducers form the directional and branching network of buried water mains from treatment plant to end-user connection
- DI pipe mechanical joint fittings connect to gate valves and butterfly valves at isolation points along distribution mains, allowing sectional shutdown without full system drainage
- Flanged fittings at pump station inlets and outlets withstand sustained working pressures and water hammer surges generated by variable-speed pump operation
Wastewater and Sewerage Infrastructure
- Ductile iron flanged fittings resist the hydrogen sulphide and abrasive solids present in wastewater streams, where lower-grade materials suffer accelerated internal deterioration
- Sulphate-resisting and high-alumina cement mortar linings are specified for sewage applications, providing chemical resistance beyond what standard Portland cement provides
- Restrained joint configurations at rising main bends and pump discharge points eliminate the need for thrust blocks in restricted access sewage pump station installations
Industrial and Process Pipelines
- High-pressure flanged ductile iron fittings rated to 350 psi serve cooling water, process fluid, and compressed air transmission lines across power generation and manufacturing facilities
- Dismantling joints at heat exchanger inlets, flow meter stations, and control valve assemblies allow rapid component removal during planned and emergency maintenance shutdowns
- Epoxy-coated external surfaces and stainless steel tie bar options are specified for chemical processing environments where standard zinc or asphaltic coatings would be insufficient
Fire Protection Systems
- Grooved and flanged mechanical pipe fittings connect fire pump sets to sprinkler risers, deluge systems, and hydrant mains across commercial, industrial, and infrastructure projects
- NSF-61 certified internal linings allow fittings to serve dual-purpose fire and potable water supply networks without requiring separate product lines or additional certification
- Pressure-rated fittings at riser bases and pump discharge flanges absorb surge pressures generated during system activation without joint separation or gasket displacement
