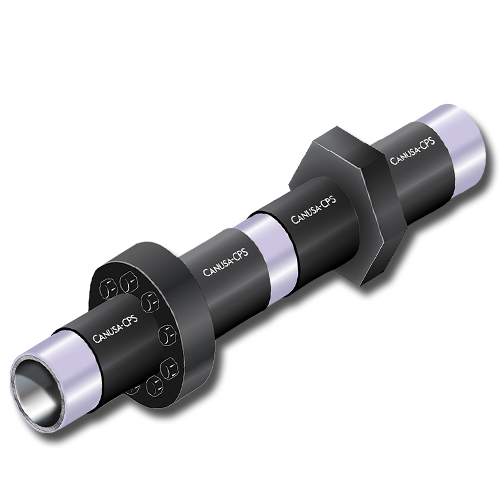

Heat Shrink Sleeve for Pipeline Joint Corrosion Protection
Field-welded pipe joints are the most vulnerable point in any buried pipeline, where factory coating ends and bare steel is exposed to soil, moisture, and corrosive ground conditions. A heat shrink sleeve seals this gap permanently using a radiation cross-linked polyolefin barrier that bonds directly to the pipe surface under applied heat.
Durable heat shrink sleeve protects pipelines from corrosion in oil, water, and cooling systems. Ideal for sealing and insulating pipe joints with a tough adhesive seal. Reliable in harsh industrial settings. The range covers two-layer mastic, three-layer epoxy, tubular, wraparound, and pre-insulated configurations for steel, ductile iron, and HDPE pipelines from DN 50 to DN 1000.
At Dutco Tennant LLC, we source premium Heat Shrink Sleeves from globally certified manufacturers and supply them across municipal, oil and gas, and infrastructure projects throughout the UAE and GCC.
Specified Across Demanding Pipeline Projects
- Heat shrink sleeves for pipelines conform tightly to bends, elbows, tees, and flanged joints where tape wrapping leaves voids and disbonds under backfill pressure
- Radiation cross-linked HDPE backing resists impact and abrasion to ASTM G-13 and G-14 standards, withstanding backfill forces and ground movement throughout service life
- Corrosion protection shrink sleeves with mastic adhesive resist shear forces from soil pressure, thermal expansion, and ground settlement without lifting from the steel surface
- Thermal indicator paint changes colour at the correct recovery temperature, confirming full shrink quality on every joint without temperature measurement instruments
- Compliant with BS EN 12068, DIN 30672, AWWA C217, and SY/T 0413, covering European, international, and GCC project specifications within a single sourced range
System Capabilities Worth Knowing
- Layer Configuration: Two-layer systems pair copolymer adhesive with cross-linked PE backing; three-layer systems add a solvent-free liquid epoxy primer, replicating 3LPE factory coating performance at the field joint
- Adhesive Options: Butyl rubber mastic suits pipelines up to 50°C; semi-crystalline hot-melt adhesive handles operating temperatures up to 80°C per BS EN 12068
- Shrink Ratio: Standard 2:1 recovery ratio covers a range of pipe diameters per sleeve size, reducing stock requirements across multi-diameter projects
- Closure Patch System: High-shear-strength closure patches secure wraparound sleeves during recovery and maintain tubular form against disbondment under sustained soil and hydrostatic pressure
- Coating Compatibility: Fully compatible with 3LPE, 3LPP, FBE, coal tar, bitumen, polyurethane, and epoxy mainline coatings with standard abrasive blast surface preparation
Types
Two-Layer Wraparound Heat Shrink Sleeve
Heat shrinkable pipe sleeves in the two-layer configuration bond a visco-elastic butyl or mastic adhesive to a radiation cross-linked HDPE backing, applied directly to a cleaned pipe surface without primer.
- Shrinks to a seamless fit at a minimum recovery temperature of 120°C, with the thermal indicator confirming even recovery across the full sleeve surface
- Suits buried and aerial pipelines in water supply, gas distribution, and cooling water systems at continuous operating temperatures up to 50°C
- Available in pre-cut wraparound sheets with closure patch, or tape roll form for irregular joints and large-radius bends
Three-Layer Epoxy Heat Shrink Sleeve
A three-layer heat shrink sleeve adds a solvent-free two-component liquid epoxy primer between the blast-cleaned steel and the copolymer adhesive layer, replicating 3LPE factory coating performance at the field weld joint.
- Epoxy primer bonds chemically to steel and mechanically to the adhesive interlayer, providing cathodic disbondment resistance that two-layer mastic systems cannot match
- Hot-melt adhesive variants sustain operating temperatures up to 80°C, suited to high-temperature oil, gas transmission, and hot water distribution pipelines
- Conforms to EN 12068 Class C50 and is specified where mainline coating continuity across the full girth weld cutback zone is a project requirement
Tubular Heat Shrink Sleeve
A tubular pipeline joint protection sleeve slides over the pipe end before welding and positions centrally over the completed joint, eliminating the closure patch entirely.
- Continuous tubular form produces a seamless 360-degree shrink with no overlap seam, ensuring uniform coating thickness across the entire joint circumference
- Suited to small-diameter pipelines DN 50 to DN 200 where wraparound handling is awkward and a slip-on form simplifies field installation considerably
- Available with butyl mastic and hot-melt adhesive options to match the operating temperature and burial conditions of each application
Pre-Insulated Pipe Heat Shrink Sleeve
Heat shrink sleeves for pipelines in the pre-insulated configuration seal joints between pre-insulated pipe sections in district heating, cooling water, and chilled water networks.
- Outer jacket sleeves bond to the HDPE casing, sealing against moisture ingress that would saturate polyurethane foam insulation and degrade thermal performance
- Inner carrier pipe sleeves provide a separate corrosion barrier at the steel joint, independent of the outer casing seal, giving a two-stage moisture defence at every connection
- Rated for above-ground, buried, and subsea installation conditions where standard pipeline sleeves are insufficient
Directional Drilling and Offshore Heat Shrink Sleeve
Corrosion protection shrink sleeves for horizontal directional drilling and offshore use feature a reinforced outer layer resisting the abrasion and drag forces generated during trenchless installation through rock and compacted soil.
- Super-heavy-duty HDPE backing passes ASTM G-17 penetration and ASTM G-13 impact tests at force levels that standard pipeline sleeves cannot sustain
- Adhesive formulations resist hot water immersion and cathodic protection current interference in submerged and splash-zone environments over extended service intervals
- Compatible with FBE, 3LPE, and fusion-bonded epoxy composite coatings used on offshore and directionally drilled pipelines
Standout Features & Benefits
Permanent Bond Without Voids
- Adhesive flows under heat to fill surface imperfections in blasted steel, forming void-free contact that blocks moisture from tracking beneath the sleeve
- Heat shrinkable pipe sleeves with epoxy primer meet peel adhesion requirements of BS EN 12068 and AWWA C217 across the full operating temperature range
- Cathodic disbondment resistance verified to ASTM G-8 and ASTM G-42 ensures the sleeve remains fully bonded under impressed current cathodic protection throughout service life
Mechanical Strength at the Joint Zone
- Cross-linked HDPE backing withstands backfill impact, rock point loading, and soil shear forces that crack or disbond lower-grade field joint coatings after burial
- Ribbed outer surface texture confirms recovery completeness visually, preventing cold spots that leave the backing unbonded and mechanically weak at the joint
- Pipeline joint protection sleeves in super-heavy-duty thickness maintain coating continuity equivalent to factory-applied 3LPE or 3LPP mainline coatings along the full pipeline length
Fast Field Installation
- Standard propane torch or infrared heater is the only tool required; thermal indicator eliminates the need for temperature measurement instruments during application
- Closure patches with pre-applied adhesive attach in seconds, allowing a trained installer to complete a joint in under 15 minutes on standard pipe diameters
- Two-layer mastic sleeves install without primer, removing mixing and pot-life constraints that slow three-layer epoxy applications in fast-paced field conditions
Broad Standards Compliance
- Conforms to BS EN 12068, DIN 30672, AWWA C217, SY/T 0413, and GB/T 23257, covering European, North American, and Asian project specifications in one sourced range
- Independent laboratory testing to ISO, NACE, and EN-DIN procedures produces verifiable data for project quality documentation and coating inspection records
- NSF-61 certified variants are available for potable water pipelines where material approval from recognised health authorities is a contract requirement
Application Area
Oil and Gas Transmission Pipelines
- Girth weld joints on buried and aerial transmission lines receive three-layer epoxy sleeves replicating 3LPE or FBE mainline coating performance across the full cutback zone
- Hot-melt adhesive sleeves are specified on high-temperature crude oil and refined product lines operating above 60°C where mastic adhesives soften and creep under sustained thermal load
- Directional drilling sleeves protect joints during pull-through installation at river crossings, road crossings, and urban corridors where open-cut trenching is not permitted
Municipal Water and Wastewater Infrastructure
- Ductile iron and steel water main joints use wraparound sleeves to restore corrosion protection at mechanical sockets, push-on bells, and flanged connections left uncoated after field assembly
- Pipeline joint protection sleeves on sewage force mains protect girth welds from hydrogen sulphide, soil chlorides, and stray current corrosion in aggressive burial environments
- Rehabilitation projects recoat localised damage on existing water mains using wraparound sleeves without removing the pipe from service
District Heating and Cooling Networks
- Pre-insulated pipe sleeves maintain thermal continuity at every joint, preventing moisture ingress that degrades polyurethane foam insulation and raises heat loss across the network
- Outer jacket sleeves rated for continuous immersion protect buried pre-insulated pipelines in high groundwater zones where standard materials absorb moisture and fail prematurely
- Inner carrier pipe sleeves deliver independent corrosion protection beneath the insulation layer, providing two-stage defence against condensation and groundwater at every joint
Industrial Process and Cooling Systems
- Cooling water, fire water, and process fluid pipelines in power stations and petrochemical plants use epoxy primer sleeves at all field joints in chemically aggressive soil zones
- Corrosion protection shrink sleeves at flanged joints and insulated flange kits seal the transition between coated pipework and bolted assemblies, preventing crevice corrosion at exposed metal edges
- UV-stabilised sleeve variants maintain backing integrity and adhesive bond strength under direct solar radiation across the temperature extremes of Gulf and industrial environments
