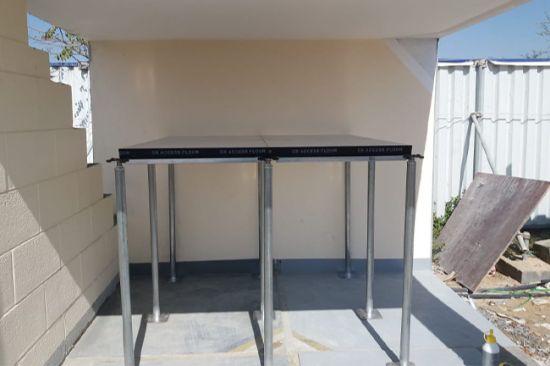

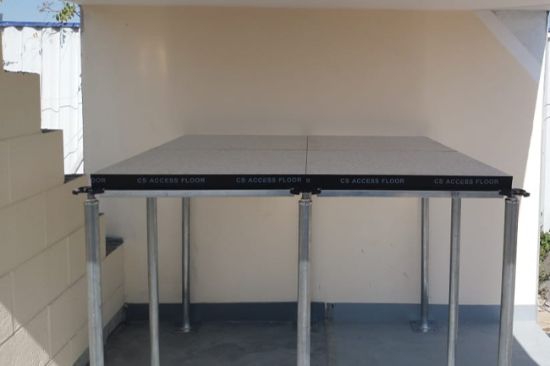

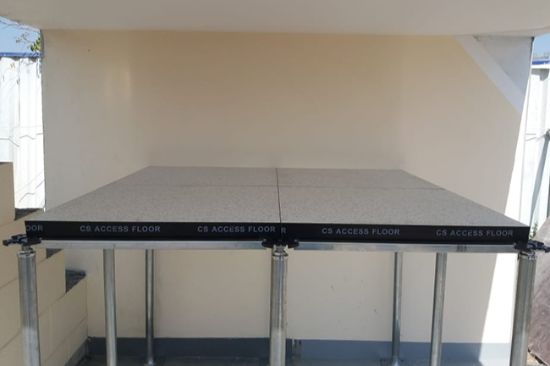

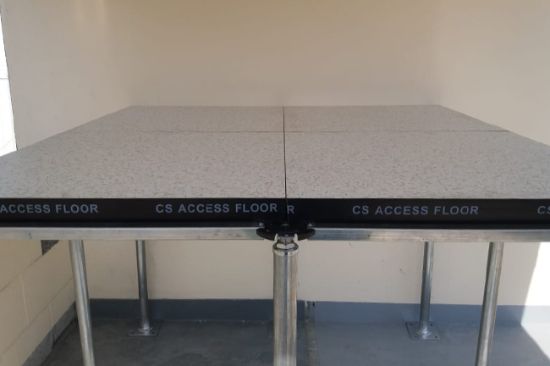

The Raised CS Access Flooring High Density Chipboard Model DTEC 40 system is fabricated from Woodcore Panel with HPL finish. It is a highly durable panel comprising high density chipboard particles with 1mm thickness galvanized steel plate at the bottom that makes the panel corrosion resistant. The top surface has a 1.2mm thickness anti static HPL finish that delivers high-efficiency electrical resistance.

In order to prevent humidity and the impact that it has on the panel surface, this raised CS Access Flooring system has edges sealed with PVC edge trims. The system also comprises zinc coated anti-corrosive pedestals that are height adjustable and comes along with sound insulation gaskets and galvanized steel stringer offering additional support to the raised access flooring system.

Technical Information

  • Panel Size: 600 x 600 mm
  • Panel Thickness: 40 mm
  • Panel Weight per piece: 12 kgs
  • Product Composition: 780 kg/cbm High Density Chipboard
  • Safety Factor: 2.5
  • Max. Deflection: 2.0mm
  • Areas of Application

  • Substations
  • Datacenters
  • Telephone Rooms
  • Electrical Rooms
  • IDF & MDF Rooms
