Soft Seal Gate Valve for Fire Protection and Water Supply Systems
Metal-seated gate valves lose sealing integrity as seat surfaces corrode, accumulate debris, and fail under sustained line pressure. A Soft Seal Gate Valve eliminates this by fully encapsulating the ductile iron wedge in vulcanised EPDM rubber, delivering zero-leakage bi-directional shutoff across the full service life without seat grinding or refacing.
We supply a Soft Seal Gate Valve with full rubber-coated gate, low torque, and leak-proof flanges, ideal for fire protection and water supply systems. The range covers OS&Y handwheel, gearbox, and electric actuator configurations with flanged ends to ANSI B16.1, DIN 2501, and BS EN 1092-2 across a wide diameter range.
At Dutco Tennant LLC, we source premium Flange Rising Stem Soft Seal Gate Valves from globally certified manufacturers and supply them across firefighting, water supply, and industrial projects throughout the UAE and GCC.
Why These Valves Are Specified First
- A flange rising stem gate valve gives instant visual open or closed confirmation as the stem travels outside the bonnet, eliminating position ambiguity on fire and water control applications
- Full-bore smooth waterway with no gate slot prevents debris accumulation that causes seating failure in conventional metal wedge configurations over time
- Multi-turn handwheel closure prevents sudden flow shutoff, eliminating water hammer surges that damage connected pipework, instrumentation, and pump sets
- Fusion-bonded epoxy coating inside and out to ANSI/AWWA C550 protects all wetted surfaces from internal corrosion in chlorinated water and wet fire protection pipelines
- Triple O-ring stem seals with a dustproof ring allow on-line packing replacement without draining the pipeline or removing the valve from service
System Capabilities Worth Knowing
- Pressure Rating: PN-rated working pressure with hydrostatic body and seat tests conforming to BS EN 12266-1 factory test procedures
- Wedge Construction: Ductile iron core with food-grade EPDM vulcanised encapsulation and abrasion-resistant nylon guide covers, keeping operating torque low and consistent on every cycle
- Tamper Switch Compatibility: OS&Y yoke and exposed stem accept supervisory tamper switches directly, signalling the fire alarm panel when the valve moves from fully open
- Actuator Options: Handwheel, bevel gearbox, electric, and pneumatic actuator configurations available across the full size range without changing the valve body
- Coating Standard: Fusion-bonded epoxy powder coat applied before assembly, covering bolt holes and body-to-bonnet flange faces at a specified minimum dry film thickness
Types

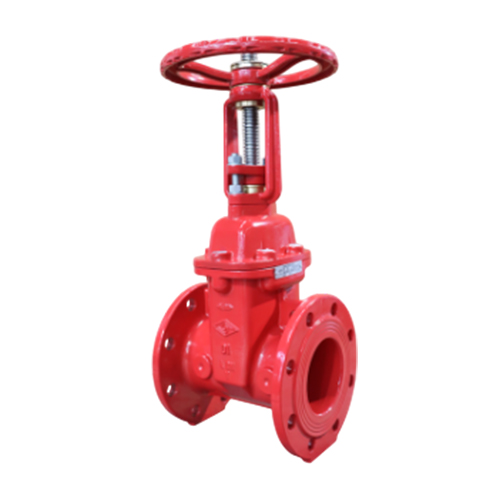

OS&Y Handwheel Flanged Soft Seal Gate Valve
An OS&Y gate valve with a handwheel uses an outside screw and yoke where the threaded stem rises visibly on opening, confirming valve position to any observer without gauges or electronic indicators.
- Conforms to NFPA 13 requirements for indicating control valves, requiring multiple full turns to close from fully open, preventing water hammer in fire suppression pipework
- Full-bore flow path generates negligible friction loss when open, sustaining residual pressure at the most remote sprinkler head across extended fire protection networks
- Suited to aboveground fire riser installations, pump room valve sets, and any application where visual stem position confirmation is a code or authority requirement
Gearbox-Operated Flanged Soft Seal Gate Valve
A gearbox-operated flanged soft seal gate valve pairs a bevel gearbox with the rising stem body, reducing the operating torque needed to open and close large diameter valves under full line pressure.
- Worm gear reduction allows a single operator to actuate large diameter valves without excessive effort or specialist equipment in water treatment and industrial pipelines
- Resilient seated gate valve EPDM wedge sealing performance is fully retained regardless of the actuator type fitted to the rising stem valve body
- Gearbox housing carries a high ingress protection rating, suitable for buried chambers, wet basements, and outdoor installations across UAE coastal and desert environments
Electric Actuator Flanged Soft Seal Gate Valve
An electric actuator Soft Seal Gate Valve integrates a motorised drive with torque and position limit switches, enabling remote operation from a control panel, SCADA system, or building management platform.
- Torque-limiting switches protect the EPDM wedge from over-compression during automatic cycling, sustaining sealing performance across high-frequency automated operation
- Manual override handwheel on the actuator allows local operation during power failure without disconnecting the actuator from the valve body
- Suited to pump station isolation, water treatment process control, and remotely monitored fire systems requiring automatic valve position confirmation
Water Supply Flanged Rising Stem Gate Valve
A water supply gate valve flanged configuration uses NSF-61 and WRAS-certified EPDM wedge encapsulation, qualifying the valve for direct potable water contact in municipal distribution systems.
- Conforms to BS5163, BS EN 1074-2, and AWWA C515, providing multi-standard compliance for projects specifying both European and North American valve standards
- Suitable for water treatment plant isolation, distribution main sectional valves, and service connection isolation where bi-directional zero-leakage shutoff is a contractual requirement
- Fusion-bonded epoxy internal coating covers all wetted surfaces, satisfying drinking water authority approval requirements across UAE and GCC municipalities
Ductile Iron Double Flange Soft Seal Gate Valve
A ductile iron soft seal gate valve in double flange configuration uses high-grade ductile iron body and bonnet with faced and drilled flanges conforming to EN 1092-2, ANSI B16.1, or DIN 2501 for direct bolted pipeline connection.
- Flange rising stem gate valve body receives fusion-bonded epoxy powder coating inside and out, applied before assembly to cover bolt holes and body-to-bonnet flange faces completely
- Available with extended stem, floor box, and surface box accessories for buried service where the handwheel operates from ground level without chamber access
- High tensile strength ductile iron provides a compact, lighter valve body at full working pressure without increased wall thickness compared to grey cast iron alternatives
Standout Features & Benefits
Zero-Leakage Bi-Directional Sealing
- EPDM encapsulation flows under compression to fill microscopic seat imperfections, achieving bubble-tight shutoff that metal-to-metal seating cannot replicate across sustained wet service
- Resilient seated gate valve construction seals equally in both flow directions, removing the directional installation constraint that applies to certain butterfly and check valve configurations
- Factory seat and shell hydrostatic tests to BS EN 12266-1 verify zero leakage before dispatch, providing quality assurance documentation for project records and authority submission
Clear Visual Position Indication
- Stem travel outside the bonnet provides immediate open or closed confirmation without position sensors, limit switches, or additional instrumentation at the valve location
- OS&Y gate valve yoke accepts supervisory tamper switches without modification, satisfying NFPA 13 and local fire authority requirements for monitored control valves on suppression system risers
- Visible stem travel gives secondary confirmation of partial positions during commissioning and flow balancing across multi-zone fire and water networks
Consistent Low Torque Operation
- Abrasion-resistant nylon wedge guide covers reduce friction between wedge and body guides on every open and close cycle, maintaining consistent operating torque throughout service life
- Thrust washers above and below the stem collar reduce stem friction under full line pressure, allowing smooth handwheel operation without extension bars or excessive force
- Water supply gate valve flanged configurations with gearbox or electric actuators protect the EPDM wedge from over-compression that shortens rubber service life under automated cycling
Long-Term Corrosion Resistance
- Ductile iron soft seal gate valve body and bonnet carry fusion-bonded epoxy coating at the specified minimum dry film thickness, protecting against aggressive soil, chlorinated water, and high-humidity environments
- DACROMET or GEOMET-coated external fasteners provide corrosion resistance on coastal UAE installations subject to salt spray and elevated atmospheric humidity
- EPDM rubber compound resists chlorine, ozone, and treated water chemistry, sustaining wedge elasticity and sealing performance across decades of continuous wet service
Application Area
Fire Protection and Suppression Systems
- OS&Y rising stem valves serve as indicating control valves on sprinkler risers, standpipe systems, and deluge systems, satisfying NFPA 13 requirements for monitored shutoff valves
- Pump room isolation uses flanged soft seal gate valve configurations to isolate fire pump sets, jockey pumps, and test lines with zero-leakage certainty at full working pressure
- Tamper switch-equipped valves signal the fire alarm control panel immediately when any branch line valve moves from the fully open position, meeting fire authority supervisory monitoring requirements
Municipal Water Distribution
- Distribution main sectional valves and service connection isolation points use water supply gate valve flanged units certified to NSF-61 for potable water contact across municipal networks
- Water treatment plant process isolation between treatment stages uses gearbox and electric configurations operable under full line pressure with minimal operator effort
- Meter station bypass valves use rising stem configurations to confirm open and closed status visually during meter verification and change-out operations
Substations and Power Plants
- Cooling water isolation in heat exchanger circuits uses gearbox-operated Soft Seal Gate Valve configurations providing low-torque operation in continuously pressurised systems
- Fire protection isolation valves within substation buildings satisfy both electrical authority and fire code requirements for supervised, indicating control valves on suppression risers
- Demineralised and raw water isolation duties in boiler feed and cooling tower systems use EPDM-seated valves rated for power generation auxiliary service conditions
Industrial Process and Building Services
- HVAC chilled and heating water distribution systems use ductile iron soft seal gate valve configurations for zone isolation, balancing, and maintenance shutoff across building services pipework
- Food processing and pharmaceutical pipelines use food-grade EPDM-certified configurations where wedge material contact with process fluid is a hygiene and regulatory requirement
- Flange rising stem gate valve configurations on building fire mains, transfer pump discharge lines, and roof tank isolation duties confirm valve position visually during routine inspection and testing
