Inception Express Controller Unified Security with Video and Access Control
Security teams managing intruder detection, access control, and video surveillance across separate platforms face slower response times, fragmented visibility, and unnecessary operational complexity. The Inception Express Controller by Inner Range brings all three functions into one browser-accessible hardware unit, removing the need for dedicated on-site software or a local host computer.
We deliver the Inception Express Controller, a unified security system combining intruder detection, access control & video, easily managed via any web browser. The range extends from standalone controller deployments to fully integrated multi-site configurations linked through Milestone XProtect video management software.
At Dutco Tennant LLC, we source the Inception Inner Range Unified Professional Video solution from Inner Range, a globally trusted security manufacturer, supplying contractors, consultants, and project developers across the UAE and GCC.
Smarter Security, Simpler Control
- Centralised access control panel consolidates intruder alarms, door access, and live video into a single browser-based interface accessible from any computer, tablet, or smartphone.
- A built-in guided tour walks operators through all standard system functions, eliminating the need for dedicated training before daily use.
- The SkyCommand mobile app provides live area status, door control, and push notifications, keeping security managers informed of events without being on site.
- Automated scheduled reports covering access history, user permissions, and time-on-site data can be exported in HTML, PDF, XLS, or CSV formats.
- The RS-485 LAN architecture supports both daisy-chain and star wiring configurations, giving installers full flexibility on cabling topology across any site layout.
Core Technical Capabilities
- Browser-Based Operation: No software installation required; the web interface is built directly into the controller and accessed via any standard browser.
- Reader Compatibility: Supports SIFER, OSDP, and Wiegand readers, expandable up to 256 Wiegand readers via LAN Access Modules, covering virtually all card reader technologies in the market.
- Universal Inputs: Eight universal inputs configurable for PIR sensors, window contacts, door reeds, and door lock tongue sensors within the same hardware unit.
- Milestone XProtect Integration: Live access and alarm events sync directly into Milestone XProtect, enabling operators to link door activity with corresponding video footage in real time.
- Relay Outputs: Four onboard relay outputs serve as lock relays for doors, lift floor button enable contacts, or general-purpose dry contact outputs for peripheral control.
Types

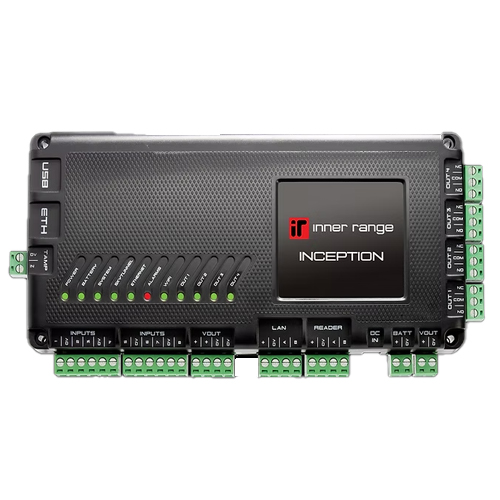

Inception Express Controller
The Inception Express Controller is the standalone core unit, combining intruder detection, access management, and automation into a single web-based hardware panel.
- Supports up to 1,024 detection points with secure IP-based back-to-base alarm monitoring via SkyTunnel.
- Universal inputs accept a wide mix of intruder and access control sensors within the same system.
- Suitable for small-to-medium commercial deployments requiring a cost-effective yet capable security platform.
IP Access Control System
The IP access control system configuration expands the base controller across a network infrastructure, enabling multi-door management without additional dedicated hardware.
- Network-connected deployment allows browser-based commissioning and operation from any point on the local area network.
- Supports up to 128 doors and 10,000 users, scaling from single-site offices to mid-size campus environments.
- Wired or optional Wi-Fi connectivity via USB adapter provides flexible network connection during installation and ongoing operation.
Unified Video and Access Configuration
This configuration links the enterprise security controller directly to Milestone XProtect VMS, creating a single-pane-of-glass interface for video and access events.
- Dynamic user syncing ensures that any credential change in Inception is automatically reflected across the connected Milestone interface.
- Door, area, and output states are visible on site maps within the XProtect Smart Client and controllable via the Milestone Mobile App.
- Number plate recognition at entry and car park barriers can be tied to access permissions, removing the need for separate ANPR infrastructure.
Smart Building Integration Configuration
This variant pairs the Inception platform with Control4 home and building automation, extending security control into lighting, HVAC, and other connected systems.
- Bi-directional REST API communication allows third-party building management systems to both receive state updates and send control commands to Inception.
- Scheduled automation rules trigger responses based on access events, area arming status, or sensor inputs across connected building systems.
- Suitable for mixed-use commercial properties where security and building operations need coordinated, event-driven automation.
Multi-Site Monitoring Configuration
Multiple Inception controllers across different sites can be integrated under a single Milestone VMS instance, creating a unified monitoring environment.
- A single operator interface consolidates live events, alarm states, and video feeds from distributed locations into one dashboard.
- Live event syncing sends access grants, denials, and alarm triggers from each site controller to the central Milestone platform in real time.
- LAN security features detect and report any unauthorised module substitution on any connected site, maintaining system integrity across the network.
Standout Features & Benefits
Browser-Based, Software-Free Management
- The entire system, covering commissioning, user management, and live monitoring, runs through any standard web browser without a local software installation.
- Web interface access is protected by timed lockout after failed login attempts, reducing the risk of unauthorised configuration access.
- System backups are created directly from the browser interface, ensuring configuration data is recoverable without specialist tools.
Seamless Video and Alarm Correlation
- Live access and alarm events sent to Milestone XProtect allow operators to pull up associated camera footage at the exact moment of an event.
- Video pop-ups triggered by alarm events give monitoring staff immediate visual context without navigating through separate surveillance software.
- Operator credentials can be verified visually by comparing a live camera feed to the access card user's stored photo before granting entry.
Scalable from Single Site to Multi-Site
- The modular LAN expansion architecture supports growth from a basic single-door installation up to 256 readers across a fully expanded network.
- Multiple controllers across geographically separate sites can be monitored and controlled through one centralised Milestone interface.
- The system supports thousands of users with role-based permissions, time schedules, and individually assigned access levels without performance degradation.
Comprehensive Reporting and Audit Trail
- Access history, user inactivity, location tracking, and time-on-site reports are available in multiple formats for compliance and operational review.
- Event notifications for alarm triggers, repeated failed login attempts, and programming changes are consolidated and sent via email to nominated recipients.
- Reports can be scheduled to run and distribute automatically, reducing manual monitoring workload for facility and security managers.
Application Area
Commercial Offices and Business Parks
- The centralised access control panel manages entry to multiple floors, server rooms, and restricted areas from a single browser-based interface without additional software overhead.
- User credential updates, access level changes, and schedule modifications are applied instantly across all connected doors and readers.
- Integrated intruder detection covers perimeter and interior zones simultaneously, removing the need for a separate alarm panel in standard commercial fit-outs.
Educational Institutions
- School and university campuses benefit from the IP access control system capability to manage student and staff credentials across multiple buildings from one controller.
- Automated lockdown outputs can be triggered through the relay system in response to alarm events, securing multiple zones simultaneously.
- Scheduled access permissions align door unlock times with class timetables, reducing manual intervention during daily operational routines.
Healthcare Facilities
- Access to pharmacies, records storage, and restricted clinical areas is managed through time-based permissions and audit-logged entry events.
- The enterprise security controller delivers detailed access history reports to support compliance requirements without relying on separate audit software.
- Integration with building automation allows access events to trigger environmental controls such as lighting and HVAC in sensitive clinical zones.
Industrial and Critical Infrastructure
- High detection point capacity covers extensive perimeter and internal sensor networks across warehouses, utilities, and process facilities within a single system.
- The system's LAN security module substitution detection ensures that no peripheral hardware can be swapped without triggering an immediate alert to the monitoring interface.
- Secure IP alarm reporting via SkyTunnel provides redundant back-to-base monitoring without dependency on a physical PSTN dialler or on-site monitoring computer.
FAQ
Does the Inception system require any dedicated software installed on a local computer?
No; the web interface is embedded directly in the controller and accessed using any standard browser on a computer, tablet, or smartphone connected to the network.
How many doors and users can the system support at full capacity?
The system scales to manage up to 128 doors and 10,000 users, with reader expansion achievable up to 256 Wiegand readers via LAN Access Modules.
Can the system send real-time alerts to mobile devices?
Yes; the SkyCommand app supports push notifications for area arm and disarm events, alarm triggers, and system alerts, and can be installed on multiple iOS and Android devices simultaneously.
What reader types are compatible with the controller?
The controller supports Inner Range SIFER smart card readers, third-party OSDP readers, and Wiegand readers, covering the most widely deployed card access technologies in commercial and industrial installations.
Is the system suitable for multi-site deployments?
Multiple Inception controllers across different locations can be integrated under a single Milestone XProtect instance, allowing a centralised operator to monitor and control all sites from one interface.
What alarm reporting methods are available?
Alarm reporting is delivered via SkyTunnel over an internet connection or through a T4000 Multipath-IP communicator providing multiple redundant reporting paths, removing dependency on a PSTN line.
