Reliable flow measurement helps water and wastewater operators understand demand, identify losses and monitor treatment processes. Electromagnetic meters are widely used for these duties because they measure conductive liquids without moving parts in the flow path. The main project choice often comes down to two formats: flanged and insertion.

Both use the same measurement principle, yet their installation needs and ideal applications differ. Choosing between them requires a clear view of the pipeline, the required accuracy and whether the network can be taken out of service.

How the two formats read flow

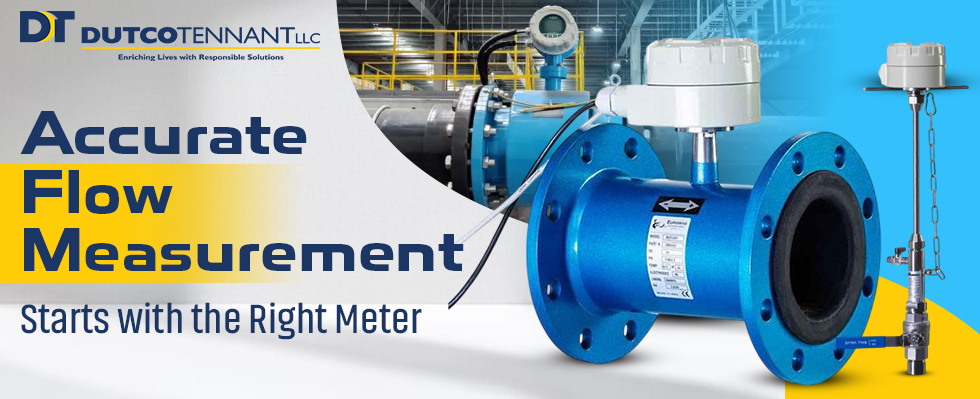

A flanged electromagnetic flow meter forms a complete measuring section within the pipeline. The liquid passes through a lined tube, and the meter reads velocity across the full bore. An insertion meter uses a probe placed at a calculated depth inside the existing pipe. It measures velocity at that point and uses the pipe dimensions to calculate the flow rate.

Both arrangements support bidirectional measurement and create little hydraulic restriction. They also depend on suitable grounding, a full pipe and a conductive liquid. The key difference is therefore the way each sensor is installed and how it represents flow inside the pipeline.

Where a flanged meter fits best

A flanged electromagnetic flowmeter is usually preferred for permanent measurement points where stable, high-accuracy data is required. The reviewed product is available from DN15 to DN2000 and has a stated accuracy of 0.2% ± 2 mm/s. Its full-bore arrangement makes it suitable for water treatment, distribution, wastewater, irrigation, pumping stations and industrial process lines.

This format works particularly well in new projects because the pipework can be designed around the meter. It can also support low-flow monitoring and approved potable-water or custody-transfer configurations when the correct sensor and converter combination is specified.

Installation needs more planning on an existing line. A section of pipe normally has to be removed, the pipeline isolated and the mating flanges aligned. These requirements can increase labour, lifting and shutdown costs, especially on large mains.

Where insertion offers a practical alternative

An insertion electromagnetic flowmeter is often more practical for large pipelines that are already operating. The reviewed model covers DN50 to DN2600 and supports hot-tap installation, allowing the probe to be fitted without stopping flow under full working pressure.

This makes it useful for district metering, leakage control, network profiling, temporary flow surveys and retrofit programmes. It can be used as a portable instrument or left in place for continuous monitoring. The smaller installation footprint may also reduce excavation and pipework costs.

The trade-off is a stated accuracy of 2% ± 2 mm/s for the reviewed sensor. Performance also depends on correct probe depth and an undisturbed flow profile. Accurate pipe dimensions and suitable distance from bends, pumps or valves are important during planning.

What should guide the final choice?

The purpose of the reading should come first. A permanent treatment or distribution point may justify the tighter accuracy and full-bore measurement of a flanged meter. A live trunk main, leakage study or temporary survey may favour an electromagnetic insertion flow meter because it limits disruption.

Pipe size alone should not decide the format. Consultants should also review minimum and peak flow, operating pressure, available straight pipe, shutdown access, pipe material, lining, converter location and connection to SCADA or other monitoring systems.

Lifecycle cost provides the wider view. For a flanged mag flow meter, this includes isolation, pipe cutting, lifting and commissioning. For an insertion meter, it includes the tapping assembly, pipe survey, safe installation and verification of the probe position.

Keeping readings dependable

Neither format has moving measuring parts, so routine mechanical wear is low. Even so, commissioning and maintenance should cover grounding, cable sealing, converter condition and comparison of readings with expected network behaviour. Good installation records make later checks easier and help operators identify gradual changes.

Choosing a meter that suits the network

Flanged meters are well suited to permanent points where higher measurement performance supports control, reporting or commercial use. Insertion meters provide a flexible route for large live pipelines and network investigations. The right water flow meter in the UAE is the one that balances data quality, installation access and operating cost for the specific site.

Dutco Tennant LLC can support project teams in reviewing the measurement duty and selecting a compatible flanged or insertion electromagnetic solution.
