IN Dismantling Joints Irrigation Network

Description

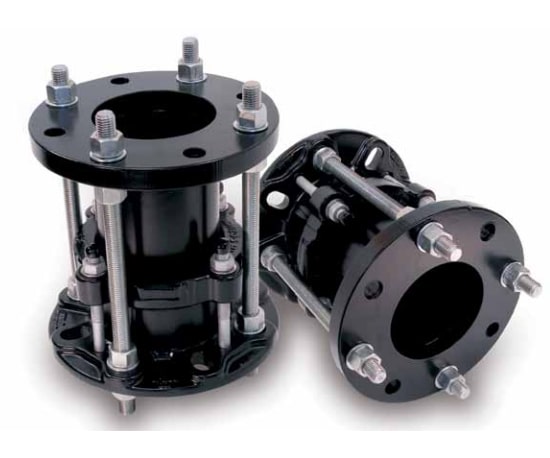

Rigid dismantling joint with continuous tie rods used to facilitate assembly or disassembly of valves installed in pipelines. Suitable for use in water treatment, water distribution and wastewater applications, dams, power plants, industry and in pressure management.

VAG VARIplus-DJ Dismantling Joint 2 flange design, rigid, with continuous threaded anchor bolts on both sides

PN: 10/16 - DN: 50...2000

ProductgroupFittings (incl. VAG BAIO®plus)

Medium: Water,  Wastewater

Characteristics

  • With flange ends on both sides acc. to EN, ANSI, BS, SABS
  • For easy installation and dismantling of valves
  • Suitable for transmission of pipe forces
Social Media Share
. . . .
0/5 (0)

My Rating Form

  •  Adaptor sleeve: DN 50...150/200 ductile iron EN-GJS-400-15 (GGG40), DN 175/250...2000 rolled steel
  • Adaptor flange: DN 50...80/125/250...2000 steel, DN 100/150...200 ductile iron
  • Adaptor end ring: DN 50...300 ductile iron, DN 350...2000 rolled steel
  • Spigot: Steel
  • Seals: EPDM
  • End ring fastener studs: 304 SS
  • Threaded anchor bolts: 4.8 electro galvanized
