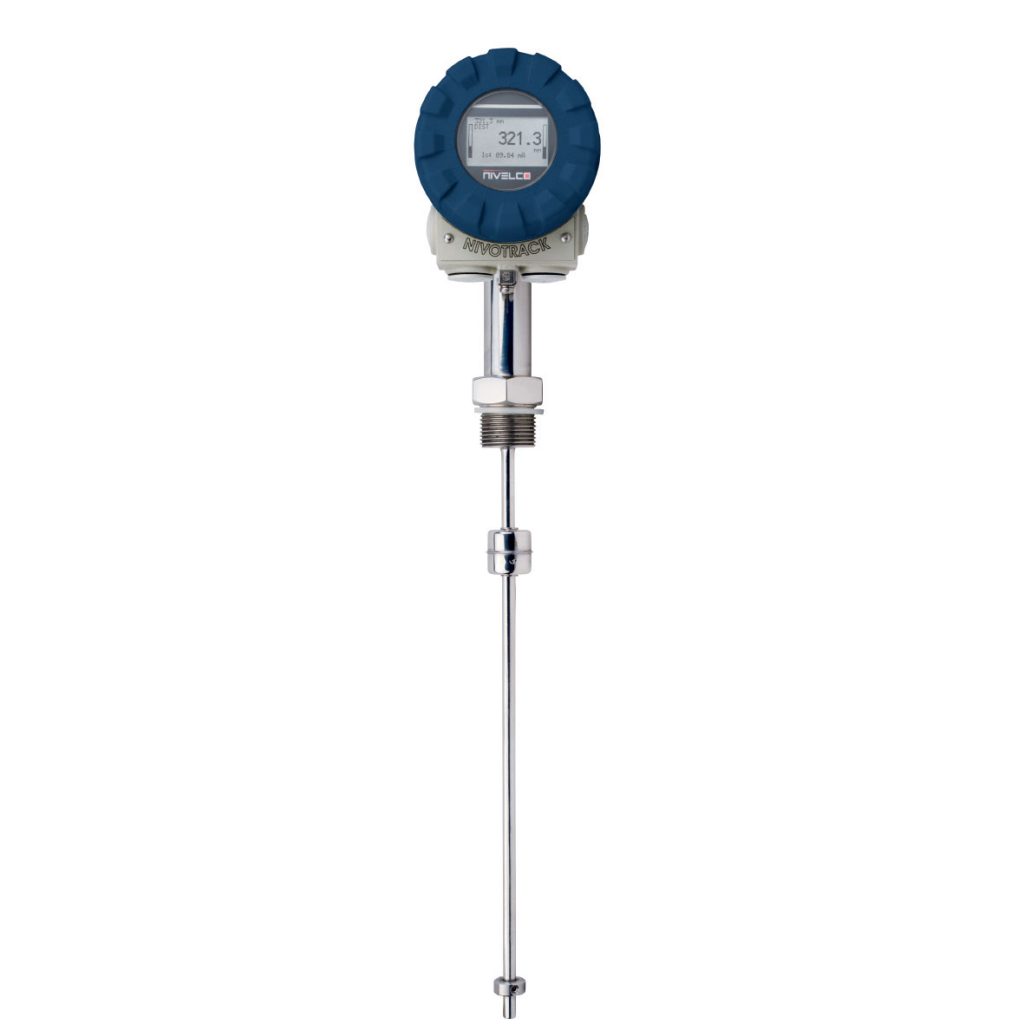

Magnetostrictive transmitters are an ideal solution for high accuracy measurement of clean fluids. Its high precision unit renders suitable for custody transfer measurement of liquids such as fuels, solvents, alcohol derivatives etc. Units with flexible tube do not only make this accurate measurement for higher tanks possible, but offer a more convenient way for shipment and installation. Plastic coated versions of the unit substantially expand the field of application by a wide range of aggressive materials. Integrating the transmitter into a process control system is easy thanks to the intelligent signal processing and communication software as well as the wide of range of accessories offered.
TECHNICAL DATA
| TYPE | 4 WIRE INTEGRATED |
|---|---|
| MEASURING VALUE | LEVEL, DISTANCE, VOLUME |
| PROBE MATERIAL | SS 1.4571 / PFA COATED SS |
| MEASURING RANGE | 0.5M – 15M |
| OUTPUT SIGNAL | 4-20mA |
| COMMUNICATION | HART |
| PROCESS TEMPERATURE | -40 °C … +90 °C |
| AMBIENT TEMPERATURE | -40 °C … +70 °C |
| INGRESS PROTECTION | IP67 |
| PROCESS CONNECTION | 1” / 2” BSP NPT |
