Flange Adaptors Sewage

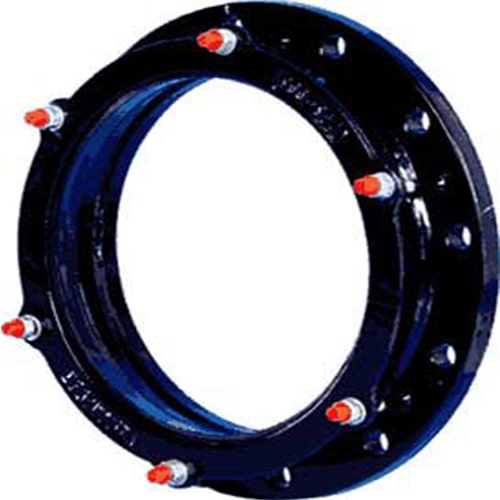

Cast Iron Flange Adaptor is designed to join pipes of various outside diameters with flanged equipment of various drilling tables. Because of the wide range of tolerance on OD , a Cast Iron Flange Adaptor can connect steel, ductile iron, cast iron, UPVC, asbestos cement and other rigid pipeline accessories.

Moulded, circumferentially ribbed or specially profiled sewage gaskets, generally in EPDM or NBR materials, provide for smooth installation by minimizing contact friction. Cast Iron Flange Adapter gaskets are designed to provide a leak-tight seal across the O.D range per nominal size and still allow for thermal expansion and contraction of the pipe up to 5mm per gasket, facilitated through gasket deformation.

ADD – in Description

Sizes: 50 - 2000NB

Working Pressure: 10/16/25 Bar*

Features

  • Complete water tightness.
  • According to ISO, UNE, DIN, NF, BS and AWWA standards.
  • Fully corrosion resistant construction
  • Non Toxic Blue fusion bonded epoxy coating
