Fire protection systems require dependable components that can perform consistently throughout their operational life. Whether installed in sprinkler networks, fire pump rooms, hydrant systems or water distribution infrastructure, valves play a critical role in controlling and isolating flow when required.

At Dutco Tennant, we supply UL/FM Approved Butterfly Valves for fire protection, water distribution, HVAC and industrial applications. Designed for reliable operation and compliance with recognised industry requirements, these valves are widely used across commercial buildings, industrial facilities and infrastructure projects. Understanding the key features that influence valve performance can help engineers, contractors and procurement teams select the most suitable solution for their systems.

Understanding UL/FM Approved Butterfly Valves

Butterfly valves are quarter-turn valves that use a rotating disc to regulate or isolate flow within a pipeline. Their compact design, straightforward operation and suitability for larger pipe sizes have made them one of the most widely specified valve types in water-based systems.

An UL/FM Approved Butterfly Valve has been tested and certified for designated fire protection applications. These approvals provide assurance that the valve meets specific performance requirements and can be incorporated into systems where compliance is essential.

Because of their versatility, these valves are commonly used in sprinkler systems, fire pump installations, risers, hydrant networks and water distribution lines.

Why UL/FM Certification Matters

When specifying fire protection valves, certification should always be one of the first considerations.

UL and FM approvals demonstrate that the valve has been independently assessed for fire protection service. This helps ensure compliance with project specifications, consultant requirements and regulatory expectations.

For large-scale developments and critical infrastructure projects, approved valves also simplify the review and approval process by providing recognised documentation and performance credentials. Selecting a certified valve helps support confidence in both installation quality and long-term system reliability.

Features

  • UL/FM Approved Design – Certified to meet stringent fire protection and safety standards for reliable performance in critical applications.
  • Robust Construction – Engineered with high-quality materials to ensure durability, strength, and long service life under demanding conditions.
  • Leak-Tight Shut-Off – Precision sealing mechanism ensures tight closure and minimizes risk of leakage in fire protection systems.
  • Corrosion Resistance – Specially coated and designed to withstand harsh environments, ensuring long-term operational efficiency.
  • Easy Installation & Operation – Wafer/lug-type design enables simple installation, low maintenance, and smooth quarter-turn operation.

Choosing Between Wafer and Double Flanged Designs

Body configuration is another important factor during valve selection. Different installations may require different connection arrangements depending on pipe size, space availability and operating conditions.

Valve Design Typical Application
Wafer Type Butterfly Valve Compact installations between pipe flanges
Wafer Body Valve Building services and HVAC systems
Double Flanged Butterfly Valve Fire water networks and larger pipelines
Double Flanged Body Utility infrastructure and industrial systems

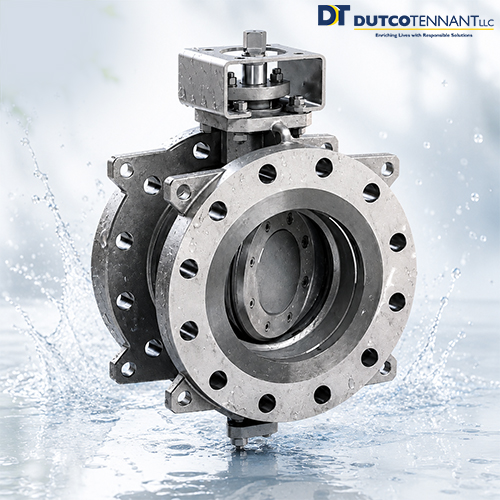

A wafer type butterfly valve is often selected where installation space is limited and a compact design is beneficial. These valves fit between pipe flanges and are widely used in mechanical services and water distribution applications.

A double flange type butterfly valve incorporates flanges as part of the valve body, creating a more robust connection. This design is frequently specified for larger diameter pipelines where alignment, support and installation stability are important considerations.

The most suitable configuration depends on the specific requirements of the project and the operating environment.

Understanding Pressure Ratings for Fire Protection Systems

Pressure rating plays a significant role in valve performance and system compatibility.

Many fire protection and water distribution installations utilise class 150 butterfly valve configurations because they align with common operating conditions. For systems operating at higher pressures, butterfly valve class 300 options may be required depending on design specifications.

The selected pressure class should accommodate both normal operation and testing requirements. Reviewing pressure ratings during the design stage helps ensure the valve can perform reliably throughout the service life of the system.

The Importance of Sealing Performance and Durability

Reliable shut-off performance is essential for any valve used in fire protection and water systems.

The effectiveness of a butterfly valve depends on the quality of its sealing components, seat design and overall construction. These elements influence leakage resistance, operational efficiency and maintenance requirements.

Environmental conditions should also be considered during product selection. In industrial facilities, coastal locations and utility infrastructure projects, corrosion resistance can be just as important as pressure capability. High performance butterfly valves are often specified where durability and extended service life are key project requirements.

Material selection, protective coatings and internal component design all contribute to long-term valve performance.

Operation, Accessibility and Long-Term Maintenance

Operational efficiency extends beyond opening and closing the valve.

Smaller valves commonly utilise lever operation, while larger sizes often incorporate gear operators that reduce operating effort. Position indication can also assist operators and maintenance teams by providing a clear visual reference of valve status.

Maintenance accessibility should be considered during the planning stage. Adequate space around the valve simplifies inspection, servicing and routine operational checks. Selecting a valve that supports straightforward maintenance can contribute to improved system reliability over time.

Common Applications of UL/FM Approved Butterfly Valves

Fire protection remains one of the primary applications for these valves, but their use extends across many water-based systems.

Commercial buildings commonly use fire protection butterfly valves in sprinkler systems, hydrant networks and fire pump rooms. Industrial facilities incorporate them into fire water infrastructure, cooling water systems and utility services. Municipal water projects often utilise butterfly valves for water systems where efficient isolation and flow control are required.

Double flanged butterfly valves are frequently specified for larger infrastructure projects, while wafer type designs are commonly selected for mechanical services and building applications where installation space is limited.

Their adaptability makes them suitable for a broad range of engineering and infrastructure requirements.

Selecting the Most Suitable Butterfly Valve

Selecting the right valve involves evaluating multiple performance factors rather than focusing on a single specification.

Certification, body design, pressure rating, sealing capability and maintenance requirements all contribute to overall performance. A valve suited to a sprinkler riser installation may not be the ideal choice for a large water transmission pipeline or industrial utility network.

Understanding how these features influence performance allows project teams to make informed decisions that align with operational requirements and long-term maintenance objectives.

Supporting Reliable Fire Protection and Water Systems

At Dutco Tennant, we understand that every fire protection and water distribution system presents unique operational requirements. Selecting the right UL/FM Approved Butterfly Valve requires careful consideration of certification, body configuration, pressure rating and durability.

By evaluating these key features during the specification stage, engineers, consultants and contractors can support reliable system operation while helping ensure long-term performance across commercial, industrial and infrastructure applications.
