Thermal power plant duct systems work under continuous stress. High operating temperatures, pressure variation, vibration, dust-laden gases and repeated start-up cycles all create movement across ductwork. If that movement is not properly absorbed, stress can transfer into boilers, fans, turbines, air preheaters, chimneys and gas cleaning equipment.

This is why industrial expansion joints are an important part of duct system design. In power generation environments, they are used to accommodate thermal movement, reduce mechanical loading and protect connected equipment from unnecessary strain.

Why Movement Control Cannot Be Treated As Secondary

In a thermal power plant, ducting expands and contracts as operating temperatures change. This movement may be axial, lateral or angular, depending on the duct route, support arrangement and equipment connection points. Rigid ductwork cannot handle these movements without creating stress elsewhere in the system.

Non-metallic expansion joints are especially useful because they can absorb movement in several directions with very low reactive forces. This makes them suitable for large air and gas duct systems where connected equipment needs protection from vibration and thermal displacement.

We often see consultants reviewing these joints during the design stage, particularly where duct routes are complex or installation space is limited.

Critical Locations In Thermal Power Plants

In coal-fired power plants, expansion joints are commonly used in boiler systems, coal mill inlet and outlet ducts, air preheater ducts, gas cleaning systems, fan inlet and outlet sections, and chimneys. Each location has different design demands.

Coal mill areas may involve abrasion, vibration and pressure surges. Fan connections require flexibility and vibration management. Air preheater ducts experience temperature variation and dust movement. Chimney connections need reliable sealing while still allowing structural and thermal movement.

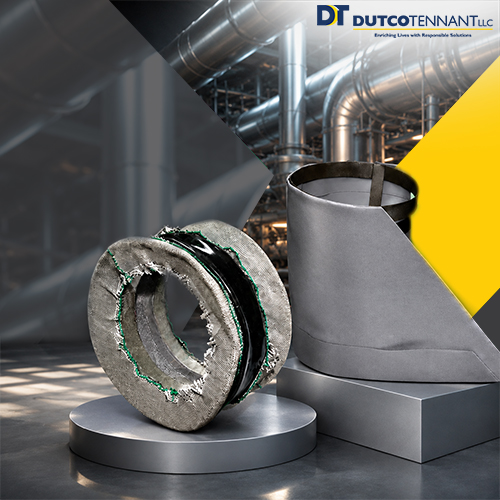

How Fabric Construction Supports Duct Reliability

Fabric expansion joints are not selected only by size. Their performance depends on material construction, operating temperature, pressure, gas composition, velocity, dust content and chemical exposure.

Some non-metallic joints use single-layer materials for moderate conditions. Multi-layer fabric systems are used where air or gas duct systems involve more demanding operating requirements. For very high-temperature services, special pre-formed fabric expansion joints may be required.

This is why accurate data matters. Before finalising industrial expansion joints, engineers should confirm temperature range, pressure, duct movement values, gas medium, dust load, velocity and installation limitations.

Key Functions of Non-Metallic Expansion Joints in Thermal Power Plants

  • Accommodate axial, lateral, and angular movement.
  • Isolate vibration from fans and rotating equipment.
  • Reduce mechanical loads on ducts and connected components.
  • Maintain gas-tight sealing under temperature fluctuations.
  • Compensate for misalignment during installation.
  • Improve overall system reliability and extend equipment life.

Abrasion And Dust Require Special Attention

Thermal power ductwork often carries dust, ash or abrasive particles. If the fabric element is exposed directly to high dust loading, wear may accelerate. Sleeve arrangements, bolsters and mechanical protection may be required depending on the operating condition.

For non metallic expansion joints Dubai projects, we often see dust and maintenance access discussed together. A joint may meet temperature and pressure needs, but if it is difficult to inspect or vulnerable to abrasion, lifecycle performance can suffer.

The best results usually come when abrasion protection, flow direction, duct geometry and maintenance access are reviewed together during specification.

Installation Planning Affects Long-Term Performance

Replacement access should be considered early. Thermal power plants often operate with planned shutdown windows, so installation time and site handling become important. Non-metallic joints may be supplied as fabric elements or pre-assembled with steel parts for faster installation.

Pre-assembled units can reduce work at site, while fabric-only replacement may be suitable when the existing steel components remain serviceable. The right option depends on the condition of the frame, available lifting access, bolt clearance and shutdown schedule.

For fabric expansion joints UAE applications, this practical installation planning can be just as important as the technical rating.

Specification Guidance For Engineers

A strong specification should include duct dimensions, shape, operating temperature, excursion temperature, pressure, movement values, gas composition, dust content, velocity, flange details, insulation requirements and access constraints.

Engineers should also clarify whether the joint needs chemical resistance, an impervious membrane, insulation bolster, abrasion sleeve or outer mechanical protection. These details influence reliability, service life and maintenance effort.

Industrial expansion joints perform best when selected as part of the full duct system rather than as isolated components.

Maintenance Visibility And Lifecycle Value

Routine inspection helps identify fabric wear, leakage, loose fasteners, insulation damage, sleeve deterioration, abnormal vibration and local overheating. Areas near fans, coal mills, boiler outlets and turbine exhaust systems usually need closer attention because they experience tougher operating conditions.

A well-specified joint supports predictable maintenance and reduces the risk of unplanned disruption. As thermal power plants continue to focus on uptime, safety and controlled maintenance planning, advanced non-metallic expansion joint solutions will remain important for reliable duct system performance.
