Reverse osmosis systems are designed to deliver consistent water quality and operational efficiency over extended periods. However, even well-designed treatment plants can experience declining performance over time. Reduced permeate flow, increasing differential pressure, higher energy consumption, and deteriorating salt rejection often indicate that the membrane system is operating under stress.

While operators may identify symptoms through routine monitoring, understanding the actual root cause often requires a detailed ro membrane autopsy. By examining used membrane elements under controlled laboratory conditions, plant operators can determine whether performance decline is caused by biofouling, scaling, mechanical damage, or other operational factors.

Two Plants Can Show Similar Symptoms but Different Problems

One of the most challenging aspects of membrane operation is that different failure mechanisms frequently present identical operating symptoms.

For example, two reverse osmosis plants may both report:

  • Reduced permeate production
  • Increased feed pressure
  • Higher differential pressure
  • Frequent chemical cleaning requirements

Despite these similarities, one plant may be affected by biological growth, while the other suffers from inorganic scale deposition.

Without detailed investigation, corrective actions may target the wrong issue, resulting in repeated performance deterioration and unnecessary operational expenditure.

This is where membrane autopsy investigations provide significant value.

What Happens During a Membrane Investigation?

A laboratory-based membrane investigation goes beyond visual inspection.

A complete membrane failure analysis typically involves several stages, including:

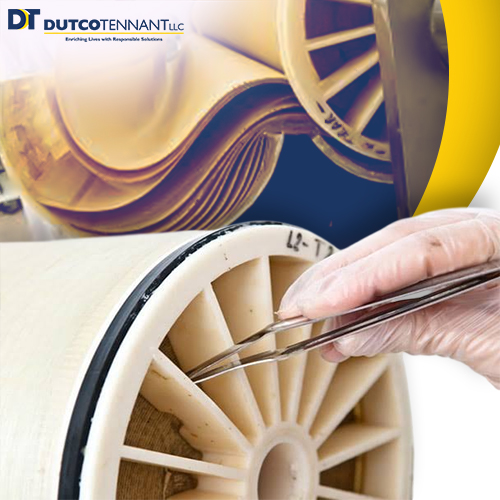

  • External and internal visual examination
  • Membrane element disassembly
  • Deposit identification
  • Microscopic examination
  • Chemical analysis of foulants
  • Performance assessment
  • Evaluation of operating history

The objective is to identify not only what is present on the membrane surface but also why the deposits developed in the first place.

When supporting water treatment facilities, we often see membrane investigations uncover multiple overlapping fouling mechanisms rather than a single isolated cause.

What Biofouling Usually Reveals

Biofouling occurs when microorganisms colonise the membrane surface and gradually form biological deposits.

These deposits often consist of:

  • Bacteria
  • Organic matter
  • Extracellular polymeric substances
  • Biological slime layers

Biofouling frequently develops when pretreatment performance is insufficient or disinfectant management is ineffective.

Common operational indicators include:

Typical Observation Possible Indication
Rapid differential pressure increase Biological growth within feed channels
Frequent cleaning requirement Persistent microbial contamination
Uneven fouling distribution Localised biological activity
Organic deposits on membrane surface Biofilm accumulation

A membrane performance evaluation often reveals whether existing cleaning procedures are effectively controlling biological activity or whether pretreatment improvements are required.

Scaling Produces Different Evidence

Scaling occurs when dissolved minerals precipitate and accumulate on membrane surfaces.

Common scale-forming compounds include:

  • Calcium carbonate
  • Calcium sulphate
  • Silica
  • Barium sulphate
  • Strontium sulphate

Unlike biological fouling, scaling is generally associated with water chemistry imbalance, inadequate antiscalant dosing, or poor recovery management.

Scale deposits frequently appear as crystalline formations that restrict water flow through the membrane element.

Operators may observe:

  • Progressive reduction in permeate production
  • Higher operating pressure
  • Reduced cleaning effectiveness
  • Increased energy consumption

Detailed laboratory examination helps determine the precise chemical composition of these deposits, allowing treatment strategies to be adjusted accordingly with help of Membrane Scaling Prevention & Removal Chemicals

Why Operating Data Alone Is Often Not Enough

Plant instrumentation provides valuable performance information, but operational data does not always explain the actual failure mechanism.

For example, increasing differential pressure may result from:

  • Biological fouling
  • Inorganic scaling
  • Colloidal fouling
  • Mechanical blockage
  • Feed spacer damage

Similarly, reduced salt rejection may indicate membrane degradation, chemical attack, or physical damage.

Because multiple issues can produce similar symptoms, the best membrane autopsy investigations combine laboratory analysis with historical plant operating data to establish an accurate diagnosis.

Membrane Autopsies Often Identify Hidden Operational Issues

In many cases, the membrane itself is not the primary source of the problem.

Autopsy findings frequently reveal underlying plant-related issues such as:

  • Inadequate pretreatment performance
  • Incorrect cleaning procedures
  • Improper chemical dosing
  • Oxidant exposure
  • Feedwater quality variation
  • Hydraulic imbalance within pressure vessels

Identifying these contributing factors helps operators implement corrective actions that improve long-term plant reliability rather than repeatedly replacing membrane elements.

At Dutco Tennant, we support industrial and municipal water treatment facilities with specialised membrane investigation services that help operators understand membrane condition and optimise system performance.

Why Early Investigation Supports Better Asset Management

Membrane replacement represents a significant operational expense for reverse osmosis facilities. Conducting investigations before widespread failure occurs can help operators maximise membrane lifespan and improve plant efficiency.

A detailed analysis of a reverse osmosis membrane may provide valuable insights into:

  • Remaining membrane life
  • Cleaning effectiveness
  • Pretreatment adequacy
  • Chemical programme performance
  • Future maintenance requirements

This information supports more informed operational and maintenance decisions across the treatment plant.

Learning From Membrane Failures Improves Future Performance

Every failed ro membrane contains valuable information about plant operation. Understanding whether performance decline is caused by biofouling, scaling, or other factors enables operators to refine pretreatment processes, optimise cleaning strategies, and improve overall system reliability.

As water treatment facilities continue to focus on operational efficiency and asset optimisation, membrane autopsy investigations remain an important tool for understanding failure mechanisms and supporting long-term membrane performance.
