Sludge draw-off is a critical part of wastewater treatment because it affects how clarifiers, tanks and wet wells manage settled solids and liquid levels. If the draw-off process is difficult to control, operators may face uneven sludge removal, unnecessary turbulence, inconsistent decanting or extra maintenance work.

A Telescopic drain valve gives operators a practical way to control water level and withdraw liquid from the desired elevation. In wastewater facilities, this makes it useful for clarifiers, sedimentation tanks, sludge holding tanks and similar process areas where controlled draw-off is required.

Why Sludge Draw-Off Needs Level Control

In a treatment tank, solids settle at the bottom while clarified liquid or supernatant remains above. The challenge is to remove liquid from the right level without disturbing the settled sludge more than necessary.

This is where telescopic valves are useful. The adjustable slip-pipe design allows the inlet level to be raised or lowered. Operators can select the draw-off elevation based on the process condition inside the tank.

This helps treatment teams manage sludge concentration, decanting and tank operation with better control. In practical terms, it reduces guesswork during routine operation and gives the facility a more flexible method for handling changing flow or sludge conditions.

How the Valve Works Inside the Tank

A telescopic valve generally uses a vertical moving pipe arrangement. By raising or lowering the pipe, the operator changes the level at which water or supernatant enters the outlet.

The Dutco Tennant wastewater range refers to stainless steel slip pipes, neoprene wiper seals and operating options such as handwheel, pedestal, electric actuator or hydraulic actuator. These details are important because sludge draw-off applications need equipment that can operate in submerged, corrosive and solids-bearing environments.

The seal helps control leakage around the moving pipe. The stainless steel construction supports corrosion resistance in wastewater conditions. The operating mechanism allows the valve to be adjusted manually or through powered control, depending on the project requirement.

Where Telescopic Valves Fit in Wastewater Plants

In primary clarifiers, the valve can help remove supernatant while settled solids remain below the draw-off level. In secondary treatment areas, it can support controlled decanting and process adjustment.

In sludge holding tanks, the valve can assist operators when they need to remove liquid from above settled sludge. This helps improve sludge handling before further treatment or dewatering.

In wet wells and process tanks, adjustable draw-off can support level management where fixed outlets may not offer enough flexibility.

These uses make telescopic valves waste water equipment relevant for municipal treatment plants, industrial wastewater systems and infrastructure projects where liquid level control is part of the process design.

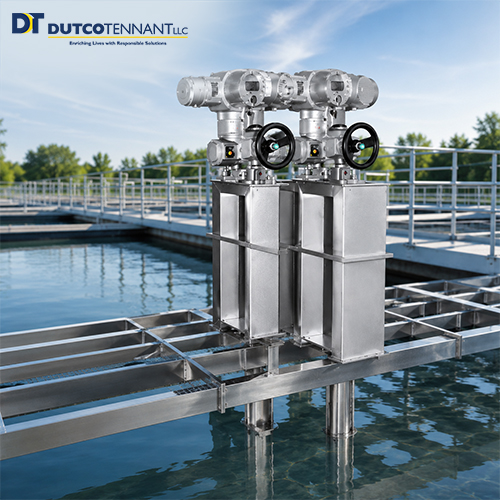

telescopic valves waste water

Operational Benefits for Treatment Teams

The first benefit is adjustable control. Operators can respond to changing tank levels, sludge depth and process conditions without relying only on fixed pipe outlets.

The second benefit is calmer draw-off. When the draw-off level is selected carefully, the process can reduce disturbance to settled solids. This can support more consistent sludge handling and cleaner supernatant removal.

The third benefit is flexibility during plant operation. Wastewater treatment plants do not always operate under the same flow and load conditions. Seasonal demand, industrial discharge patterns and maintenance schedules can all change tank behaviour. Adjustable outlet control helps operators adapt.

The fourth benefit is better maintenance planning. A clear operating arrangement, accessible controls and suitable materials can reduce unnecessary intervention and help facility teams inspect the valve more effectively.

Material and Sealing Considerations

Wastewater environments can be corrosive, abrasive and unpredictable. Materials should be reviewed carefully during specification.

Stainless steel construction is useful because it supports corrosion resistance in submerged wastewater conditions. Seal material is also important because the moving pipe depends on effective sealing during operation. The Dutco Tennant category page refers to neoprene wiper seals, which help maintain contact around the slip pipe.

Project teams should check the wastewater characteristics, expected solids content, tank depth, operating frequency and maintenance access before finalising the valve arrangement. The selected design should also suit the civil structure and outlet connection.

Manual or Powered Operation

A handwheel arrangement can be suitable where the valve is accessible and does not require frequent adjustment. It gives operators direct control and keeps the system simple.

Electric or hydraulic actuation may be preferred where access is difficult, frequent movement is expected or the valve needs to be integrated into a wider plant control system. Powered operation can also support safer working practices by reducing the need for manual adjustment near difficult or confined areas.

The choice should reflect the plant’s operating philosophy. A small tank with occasional adjustment may not need the same operating arrangement as a large clarifier or automated treatment process.

Connection with Water Level Control

In sludge draw-off, the valve performs more than a basic open-close function. It also acts as one of the plant’s water level control valves, allowing operators to decide the effective outlet height.

This is useful when the process needs staged decanting or when tank conditions vary. Instead of depending on a fixed outlet, the operator can adjust the pipe position to suit the liquid layer inside the tank.

For consultants, this makes the valve selection part of the process control strategy, not only a mechanical equipment choice.

Role of Obturator-Based Flow Control

Some wastewater flow control arrangements use an obturator valve system to regulate or isolate flow through a controlled opening. In telescopic valve applications, the same broad objective applies: controlled movement, effective sealing and dependable flow management.

The design should allow smooth operation, controlled draw-off and reliable sealing under site conditions. Where the valve is part of a larger penstock, gate or flow control package, coordination between civil, mechanical and process teams becomes especially important.

Specification Checks Before Procurement

Before selecting the valve, project teams should confirm:

  • Tank type and draw-off purpose
  • Required adjustable range
  • Pipe diameter and outlet connection
  • Material grade and seal requirement
  • Manual, electric or hydraulic operation
  • Installation depth and access conditions
  • Civil interface details
  • Maintenance clearance
  • Process control or automation needs

These checks help reduce site changes and support smoother installation.

How Our Wastewater Solutions Support Project Planning

Our Wastewater Solutions team supports project stakeholders with product selection and technical coordination for flow control, penstocks, rollergates and related wastewater equipment.

For sludge draw-off applications, this means helping align the valve arrangement with tank design, operating access, material requirements and process goals across UAE and GCC wastewater projects.

A Telescopic drain valve gives wastewater operators a practical way to control draw-off level, manage supernatant removal and adapt to changing tank conditions. When the valve is selected with the right materials, operating method, sealing arrangement and civil interface, it can support more stable sludge handling and easier long-term operation in wastewater treatment facilities.
